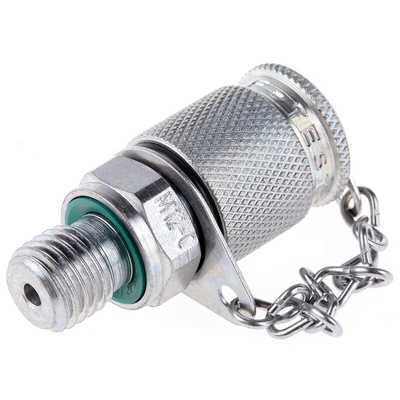

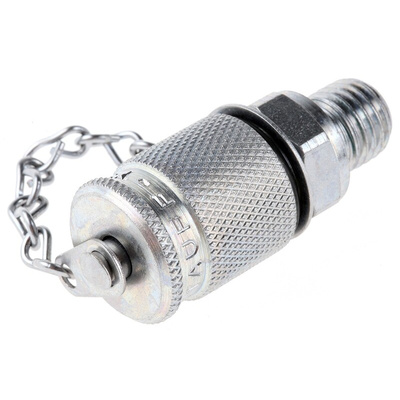

Stauff Hydraulic Test Point SMK 20 M12X1.5 VC, M12 x 1.5 Male, Контрольная точка

4325404
Номер производителя: SMK 20 M12X1.5 VCПроизводитель: Stauff
Цена за шт.
4230.00 руб. (С НДС) *
Количество 5+ 10+
Цена 4104.00 руб. 3963.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Test Coupling SMK

Test point thread M16 x 2

Warning

It is essential that tube with an adequate wall thickness for the appropriate working pressures be used with these products and systems.

Test Points - Stauff

These test products have a leak-proof ball-type sealing connection. The test couplings come with self-locking metal guard caps as standard. They can be coupled directly into the pressurised system, creating simple connection to measuring, control and switching devices. They provide fast coupling for monitoring and control of pressure, venting and sampling in low/high pressure and vacuum systems. Applications include monitoring and control of static and peak pressures, connection to pressure gauges, pressure control of fluids, venting/bleeding of air from hydraulic systems and contamination sampling for further analysis. Maximum joining pressure is 400bar. Metal parts are steel with zinc and gold surface finish (or stainless steel, where stated). Balls are stainless steel. Seals are Viton on all steel or stainless steel parts.

Техническая спецификация
pdfSTAUFF Test SMK20 Datasheet
Давление - максимальное рабочее:
630 бар
Максимальное давление присоединения:
400бар
Подключение тип:
Male
Рабочая температура - максимальная:
+200°C
Рабочая температура - минимальная:
-20°C
Размеры резьбового соединения:
M12 x 1.5
Соединение резьбовое:
M12 x 1.5 Male
Стандарт резьбового соединения:
Метрическая
