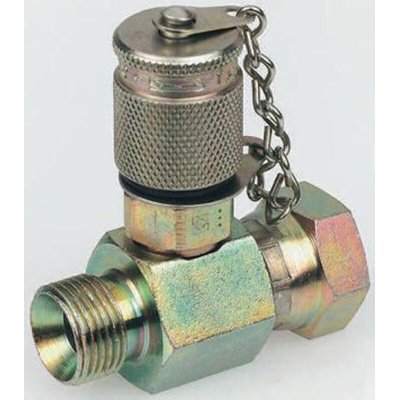

1/2\, Stauff Inline Hydraulic Test Point G 1/2 Male and G 1/2 Female, 1/2" M/F + SMK 20 R 1/8 VC ASS

4325505
Номер производителя: 1/2\Производитель: Stauff
Цена за шт.
1977.60 руб. *
Количество 5+ 10+
Цена 1916.16 руб. 1856.64 руб.

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

BSP Inline 60° Test Point Adaptor

Test point thread M16
60º coned BSP male thread one end and female swivel nut on other end
Allows in-line direct mounting between flexible hose assemblies or other suitably machined parts

Warning

It is essential that tube with an adequate wall thickness for the appropriate working pressures be used with these products and systems.

Test Points - Stauff

These test products have a leak-proof ball-type sealing connection. The test couplings come with self-locking metal guard caps as standard. They can be coupled directly into the pressurised system, creating simple connection to measuring, control and switching devices. They provide fast coupling for monitoring and control of pressure, venting and sampling in low/high pressure and vacuum systems. Applications include monitoring and control of static and peak pressures, connection to pressure gauges, pressure control of fluids, venting/bleeding of air from hydraulic systems and contamination sampling for further analysis. Maximum joining pressure is 400bar. Metal parts are steel with zinc and gold surface finish (or stainless steel, where stated). Balls are stainless steel. Seals are Viton on all steel or stainless steel parts.

Давление - максимальное рабочее:
400 бар
Подключение A - Размер резьбы:
1/2 in
Подключение A - Резьба:
G 1/2 Male
Подключение A - Стандарт резьбы:
G
Подключение A - Тип:
Male
Подключение B - Размер резьбы:
1/2 in
Подключение B - Резьба:
G 1/2 Female
Подключение B - Стандарт резьбы:
G
Подключение B - Тип:
Female
Рабочая температура - максимальная:
+120°C
Рабочая температура - минимальная:
-20°C
Размер резьбы порта:
16
Резьба порта:
Metric 16
Стандарт резьбы порта:
Метрическая
