52103020+53112720, Lapp SKINTOP Series Nickel Plated Brass Cable Gland Kit, M20 Thread, 7mm Min, 13mm Max, IP68, Комплект вводов (сальников)

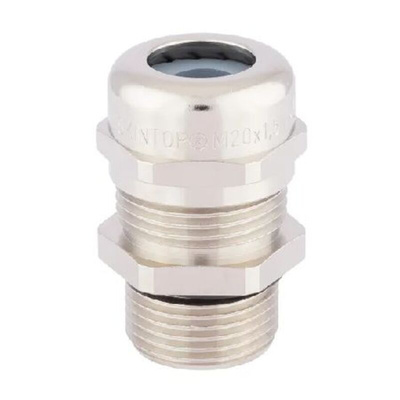

LAPP Cable Gland Kit, M20 Thread, 7 to 13mm Cable Diameter - SKINTOP Series - 52103020+53112720

Protect your industrial wiring from damage with this robust cable gland kit from LAPP. The set comes with a gland body, a cap nut and sealing units to provide complete defence for your cables. The gland and nut are made of a durable nickel-plated brass material that's resistant to corrosion, so you can rest assured of long-term performance. The sealing units keep out dust and moisture, preventing damage to both the cable and the equipment it's connected to.

Features & Benefits

• In-built strain relief prevents damage to the cable and prolongs its life span
• IP68 (ingress protection) rating to withstand dust and immersion in up to 1.5m of water for 30 minutes
• Wide operating temperature range of -30°C to +90°C for use in challenging environments
• Seals and O-ring are UV stable so can be used under direct sunlight

Applications

• Chemical processing plants
• Robotics and automation
• Process and packaging plants

Does this cable gland need maintenance?

As it's made from durable materials, this cable gland doesn't need a lot of maintenance. You may need to change the O-ring or seals if they get damaged, but this isn't a regular occurrence.

Approvals

EExe II

IBExU01ATEX1041X

Datasheet

Datasheet - 52103020+53112720
