6.130.012.852, Kübler Kubler CODIX 130 Counter, 8 Digit, 12kHz, 4 → 30 V dc, Счетчик

Kubler Counter

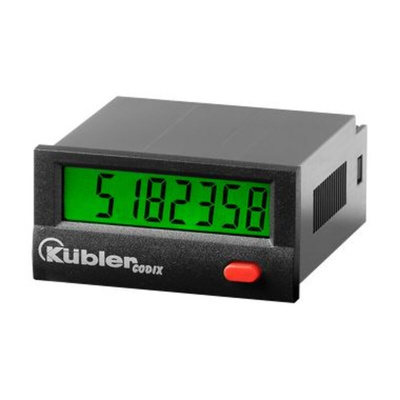

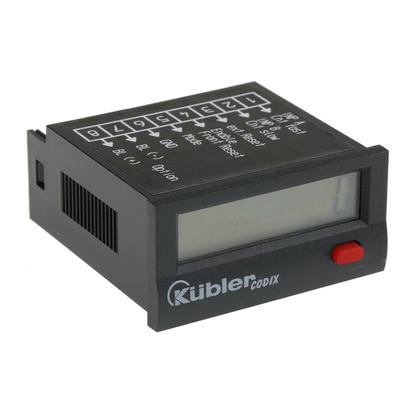

The Kubler CODIX 130 series digital counter is a simple battery-powered pulse counter for fast and slow count pulses and panel mount devices. This counter has a voltage input and is a simple to program device. It has an 8-digit LCD display and supply voltage rating range between 4VDC and 30VDC. It has optional backlighting for NPN, PNP and high voltage applications. It supports various counting modes like easy up/down, differential and phase clock even with pulse doubling for connection to incremental encoders. This counter has a maximum count frequency of 12KHz.

Features and Benefits

Count direction adding and subtracting via control input
Battery life is approximately 8 years
Display range is -9999999 to 99999999, with overflow display
The filter function for bounce-free counting with mechanical contacts

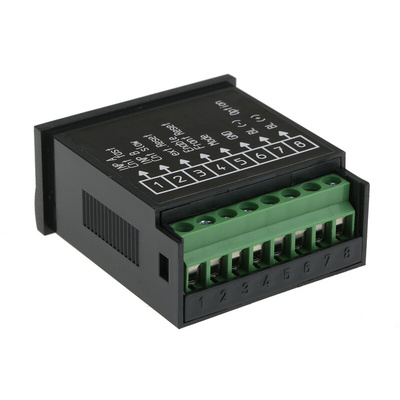

Easy and safe connection due to screw terminals
Reset key lockable via the input ’Reset Enable’
For positive and negative counting edges, depending on the version

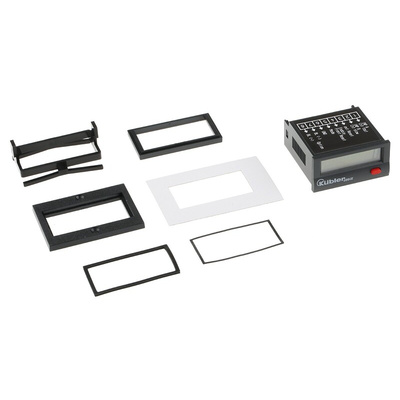

Panel cut out dimensions are 22.2mm x 45mm
Operating temperature ranges between -10°C and 60°C

Applications

Industrial counting
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated
EN 55011 class B
EN 61000-6-2
cULus approved
