6.130.012.853, Kübler Kubler CODIX 130 Counter, 8 Digit, 30Hz, Счетчик

Display Counter, Codix 130 series

8 digit LCD counter for applications without power supply (battery powered)
Very good readability due to leading zero blanking and 8mm digit height
Slow count input e.g. for mechanical contacts
Fast count input up to 30kHz
Easy and safe connection due to screw terminals
Solution for any counting task-counting mode - NPN, PNP, ac, fast, slow counting
Bezels for screw mounting included
Easy to use; no programming required
Panel cut-out: 22.2mm x 45mm
Operating temperature: -10 → +60°C
IP65 Rated

Kubler Counter

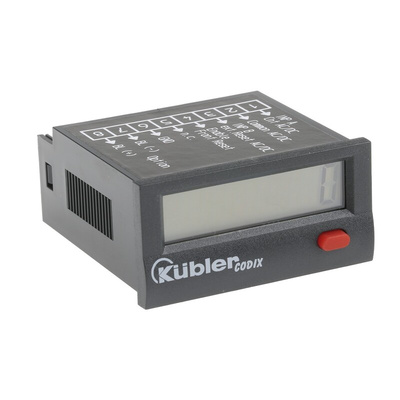

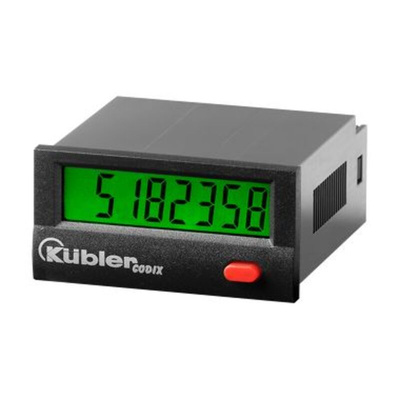

The Kubler CODIX 130 series digital counter is a battery-powered pulse counter for fast and slow count pulses. It has an 8-digit LCD display and without backlighting for NPN and high voltage application range between 10VDC/AC and 260VDC/AC. It supports various counting modes like easy, up/down, differential and phase-clock even with pulse doubling for connection to incremental encoders. This counter has a maximum count frequency of 30Hz.

Features and Benefits

Count direction adding and subtracting via control input
The filter function for bounce-free counting with mechanical contacts
Bi-directional counting

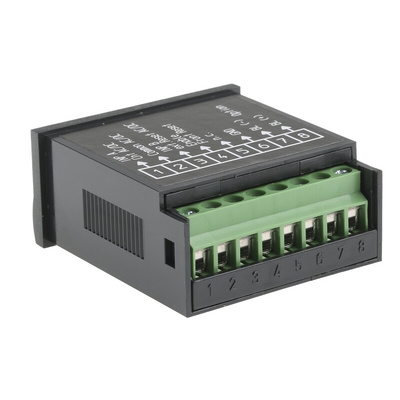

Easy and safe connection due to screw terminals
Reset key lockable via the input ’Reset Enable’
For positive and negative counting edges, depending on the version
Panel cut out dimensions are 22.2mm x 45mm
Operating temperature ranges between -10°C and 60°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated
EN 55011 class B
EN 61000-6-2
