6.134.012.853, Kübler Kubler CODIX 134 Counter, 8 Digit, 10 → 260 V ac/dc, Счетчик часов

Hour Meter, Codix 130 series

Very good readability due to leading zero blanking and 8mm high, 8 digit LCD
Bezels for screw mounting included
Easy to use, no programming required
Panel cut-out: 22.2mm x 45mm
Operating temperature: -10 → +60°C
Manual and electrical reset
Mode selection (A) 99999h 59m or 99999,99h
Mode selection (B) 9999h 59m 59sec or 9999999,9sec
IP40 Rated

Kubler Digital Hour Meter

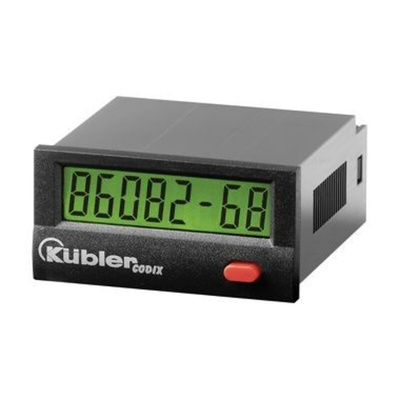

The Kubler CODIX 134 series hour meter is a 7-digit LCD display, panel-mount counter with screw connection. This is a simple, battery-powered hour meter for NPN and high voltage applications. The counter is operated at voltage rating ranges between 10VAC/DC and 260VAC/DC. The counter is reset either manually (using the button at the front) or electrically.

Features and Benefits

Easy to use, no programming required
Very high accuracy of 100ppm
Without backlighting
1pulse = 36 second programmable via control input
Panel cut-out dimensions are 22.2mm x 45mm
Measurement range is between 0 and 99999.99
Operation temperature ranges between -10°C and 55°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly line

Certifications

IP40 rated

Kubler Panel Mounting 24x48

6.134.012.853 Datasheet

Operating Instructions (multi)
