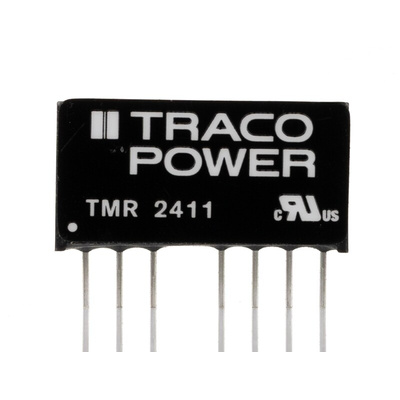

TMR 2411, TRACOPOWER TMR 2 DC-DC Converter, 5V dc/ 400mA Output, 18 → 36 V dc Input, 2W, Through Hole, +85°C Max Temp

Traco Power DC-DC Converter, 81% Efficiency, 1.6kV DC Isolation Voltage - TMR 2 Series - TMR 2411

Take your load voltage down a notch with this Traco Power DC-DC converter. Its wide input voltage range makes it compatible with power supplies ranging between 18 and 36V DC, so you can conveniently use it with most electrical inputs. The unit provides a stable nominal output of 5V DC, which is ideal for energising low-voltage industrial components such as microcontrollers and sensors. By withstanding short-circuits, it protects against faults to minimise the risk of equipment breakdown. As the converter's isolated, you can rest assured it stands in the way of hazardous input voltages.

Features & Benefits

• Efficiency of 81% indicates minimal energy wastage during conversion
• Reliable in a wide operating temperature range between -40°C and +85°C
• Compact dimensions of 21.8 (L) x 9.2 (W) x 11.1mm (D), so it's well-matched to small electronic equipment
• Optional remote control, for convenience
• Regulated, which ensures a stable and reliable power supply

Applications

• Security systems
• Healthcare facilities
• Industrial automation
• Instrumentation

Is this DC-DC converter immune to electrostatic discharge?

Yes, the component meets EN 61000-4-2 immunity standards, so it withstands static discharge from direct operator contact and the air.
