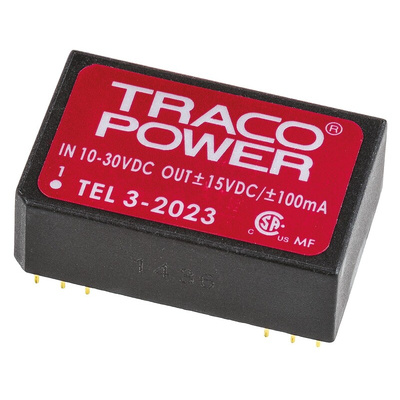

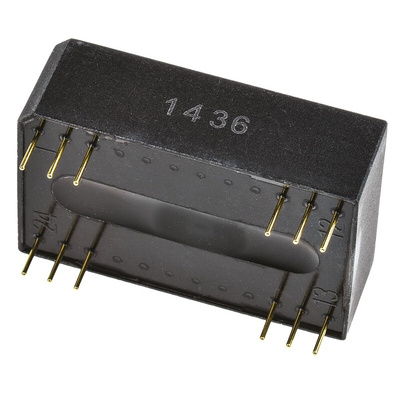

TEL 3-2023, TRACOPOWER TEL 3 DC-DC Converter, ±15V dc/ ±100mA Output, 10 → 30 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL-3 Series

The Traco Power TEL-3 series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package. With their high efficiency these regulated converters allows operation temperature up to 71°C at full load and low output noise. The TEL-3 series feature wide input range and tightly regulated output voltage, which qualifies these DC-DC converters for many cost critical applications in industrial and consumer electronics.

Wide 2:1 and 3:1 input range
High efficiency up to 81%
DIL-24 plastic package
Indefinite short-circuit protection
I/O isolation 1500 VDC
Available with industry standard pinout (NP)
Operating temperature range –40°C to +85°C

Standards

UL 60950-1, IEC/EN 60950-1

Approvals

UL, cUL, EN, IEC, CSA File No. 226037

Traco Power TEL 3 Series DC-DC Converter, 80% Efficiency, Through Hole Mount - TEL 3-2023

This Traco Power DC-DC converter features a wide 20 to 30 V input voltage range, providing industrial grade power solutions with high efficiency and isolation capabilities. The dual output, ±15 V dc design in a compact DIP 24 package offers reliability and performance in electronic and automation applications.

Features & Benefits

• Wide 20 to 30 V dc input voltage range for versatile use
• Dual output design with ±15 V dc for flexibility in operations
• High efficiency of 80% ensures optimal power conversion
• Isolated construction with 1.5 kV dc isolation voltage for safety
• Through hole mounting for secure installation in various systems

Applications

• Ideal for Industrial automation systems requiring stable power supply
• Suitable for electrical control panels in commercial and industrial settings
• Used in mechanical equipment requiring dual output power sources

Can it handle a wide input voltage range?

Yes, the Traco Power DC-DC converter is designed to operate within a range of 20 to 30 V DC.

Will it provide isolated power output?

Yes, this converter features isolation with a voltage rating of 1.5 kV DC for enhanced safety.

Is it suitable for through-hole mounting?

Yes, the converter is designed for through-hole mounting, ensuring secure and stable installation in various applications.

Approvals

UL Recognised; EN60950; UL1950
