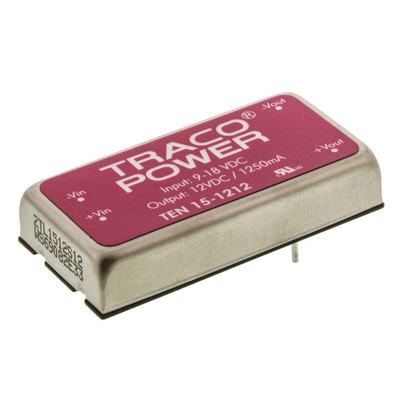

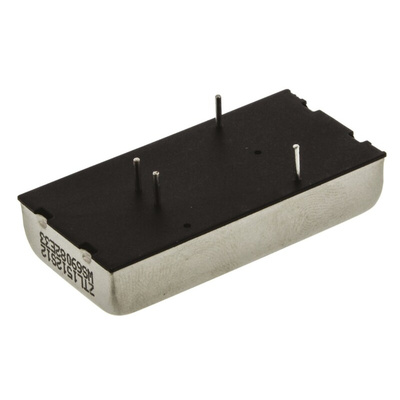

TEN 15-1212, TRACOPOWER TEN 15 DC-DC Converter, 12V dc/ 1.25A Output, 9 → 18 V dc Input, 15W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 9 to 18V DC Input Range, 86% Efficiency - TEN 15 Series - TEN 15-1212

Make the right power choices with this DC-DC converter from Traco Power. It changes inputs between 9 and 18V DC to a 12V DC output, giving your application the oomph needed for steady performance. Isolation keeps incoming and outgoing feeds in their lanes to improve electrical safety. With a high efficiency of 86%, this component generates little heat to curb losses for increased reliability. The shielded housing resists electromagnetic interferences to keep signals clear and on point.

Features & Benefits

• Integrated short-circuit protection to help prevent damage and downtimes
• Small size of 50.8 (L) x 25.4 (W) x 10.2mm (D) for easy installation in confined enclosures
• Broad operating temperature scope between -40°C and +85°C for use in demanding conditions

Applications

• Telecommunications
• Automated factory processes
• Laptops
• Automotive industry
• Smartphones
• Medical equipment

Can I connect two DC-DC converters in series?

It's possible to connect two units in series after careful testing to ensure technical performance and electrical safety. If in doubt, you could steer away from this and get a single DC-DC converter that handles the inputs and outputs of your application.

Approvals

EN60950; UL1950

TEN 15-1212 Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Application Sheet - Power Modules
