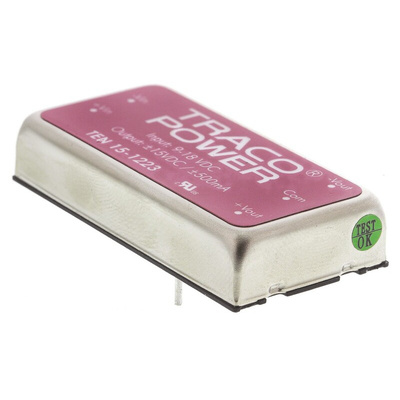

TEN 15-1223, TRACOPOWER TEN 15 DC-DC Converter, ±15V dc/ ±500mA Output, 9 → 18 V dc Input, 15W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 84% Efficiency, 1.5kV DC Isolation Voltage - TEN 15 Series - TEN 15-1223

Keep your power supply on the straight and narrow with this DC-DC converter from Traco Power. It takes on a wide input voltage range between 9 and 18V DC and converts it into a tightly regulated 15V DC output, so you can rely on it to meet your exact energy needs. Side-step the risk of power surges damaging your equipment, thanks to its short-circuit and overvoltage protection. A typical efficiency of 84% means power lost through heat is minimal. You can use this unit in a broad operating temperature range between -40°C and +85°C without loss of reliability.

• Dimensions of 50.8 (L) x 25.4 (W) x 10.2mm (D) to maximise board-packing efficiency
• Flame-retardant epoxy casing won't catch alight in the event of a fire
• Resists shock and vibration, making it compatible with harsh industrial environments
• Shielded metal case minimises the risk of electric shocks

Applications

• Industrial electronics
• Communication systems
• Battery-operated equipment
• Automotive manufacturing

Is this converter protected against EMI?

Yes, it has a built-in EMI filter, so it complies with EN 55022 standards. This makes it safe to use near IT equipment without the worry of radio signal disturbance.

TEN 15-1223 Datasheet

Industrial Power Solutions Catalogue

Selection Guide
