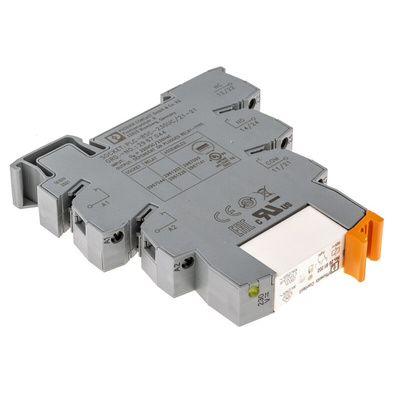

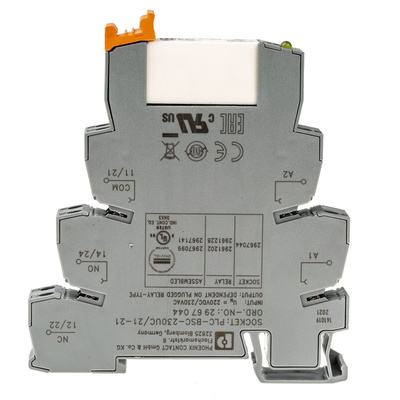

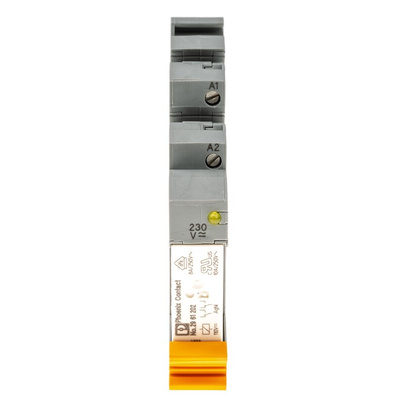

2967099, Phoenix Contact PLC-RSC-230UC/21-21 Series Interface Relay, DIN Rail Mount, 230V ac Coil, DPDT, 2-Pole

A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.

Phoenix Contact PLC-RCS Relays Series

This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm

Typical Applications:

The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Phoenix Contact Interface Relay Module, Screw Terminal, DPDT - PLC-RSC-230UC/21-21 - 2967099

Looking for a DIN-rail-mounting interface relay module to connect automation equipment to system peripherals? Turn to this compact PLC (programmable logic controller) relay from Phoenix Contact. It has a space-saving design that uses the same electromechanical relay module for switching both AC and DC voltage, which uses less room on your DIN rail. It features a basic terminal block with a plug-in miniature power relay.
The DPDT (double pole, double throw) configuration makes this a versatile device that can connect two inputs to four outputs. Screw terminals let you quickly make secure connections, while its operating temperature range of -25°C to +55°Cmakes it suitable for a range of work environments.
A freewheeling damping diode protects the circuit from sudden current losses, while the LED (light-emitting diode) operating voltage display makes it easy to monitor performance. PLC relays such as this are used to control automated industrial processes.

• Coil voltage of 230 V AC
• DPDT contact configuration
• Silver alloy contact material
• Dimensions of 80 (length) x 94 (height) x 14 mm (depth)
• Input current of 4.3 (DC) mA, 4.5 (AC) mA
• Input voltage range of 220 V DC to 230 V AC
• Load voltage rating of 250 V
• Switching current of 10 mA
