RS PRO Nylon Terminal Block Housing IP44, Cable Mount, Корпус

RS PRO Nylon Terminal Block Housing IP44, Cable Mount

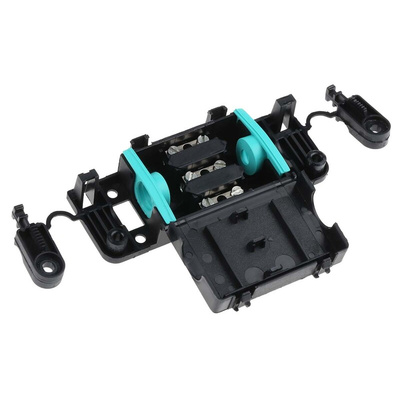

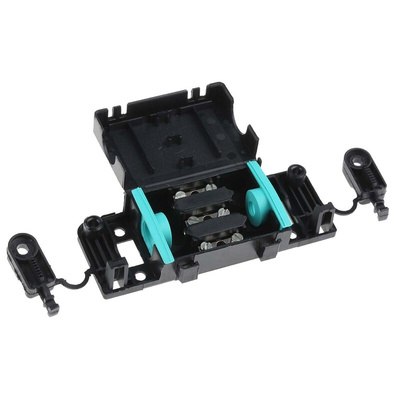

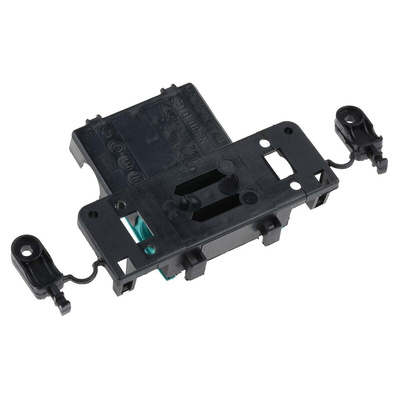

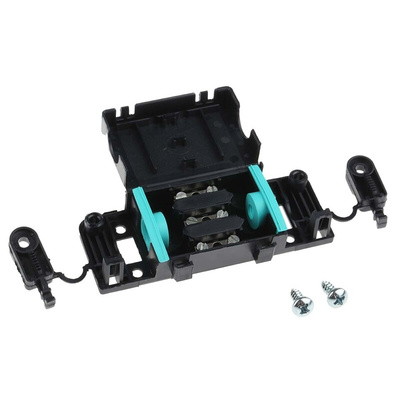

This cable-mount terminal block housing provides a protective casing to keep your electrical connections safely in their terminal block. It’s available with or without a fixing ring.

As the terminal’s insulation is made from nylon, it resists electrical current flows and stops any interference from other conductors. It also prevents electrical leakage. The terminal has an integrated strain-relief clamp along with rubber grommets to protect your wires from damage. It’s suited to wires with a cross-sectional area of 1.5 mm².

Part of the RS PRO TH110 series, this terminal block housing is typically used for industrial power, control and signal applications. It’s widely used in industrial settings as it can protect contact points from the external impact of heat, dust and water. It’s IP44-rated, so you can be sure it’s splash-proof too.

Features and Benefits

• Terminal block housing
• Cable mounting
• Three contacts for your connection
• Nylon material
• Current rating of 17.5 A
• Voltage rating of 450 V
• Operating temperature range of -20°C to +125°C
• IP44 rated (splash-proof)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Brochure

RS Pro Datasheet
