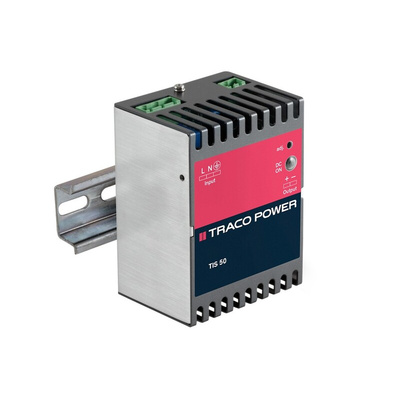

TIS 50-112, TRACOPOWER TIS Switch Mode DIN Rail Power Supply, 93 → 264V ac ac Input, 12V dc dc Output, 3.5A Output, 50W, Блок питания

50 to 600W TIS Series

High quality metal cased switch mode power supplies
Designed for symmetrical 35mm DIN-rail
Ideal for process control & machine tool applications
EMC immunity to EN50082-2
EMI to EN55011 Class B, FCC level B
Low profile
Adjustable output voltage
Fully regulated output, short circuit protection/current limit
Over-voltage protection
Very low ripple and noise
DC output OK LED indicator
Plugable screw terminals (included). Note: DIN-rail clip extends 7mm beyond depth of unit

Note

Derating 2% per °C above 50°C

Standards

IEC60950, EN60950, UL60950, UL508C

Approvals

UL listed

Traco Power TIS Series DIN Rail Power Supply, Single Phase, DIN Rail Mount - TIS 50-112

This compact and reliable DIN rail power supply is a 50W switch mode power supply designed for industrial applications. With an output voltage of 12V DC, it offers high efficiency and low ripple and noise for stable power delivery. This series ensures a reliable power source for automation, electronics, and electrical industries.

Features & Benefits

• AC to DC power conversion for industrial use
• Compact DIN Rail mount design for easy installation
• Very low ripple and noise for sensitive loads
• High efficiency switch mode power supply
• Wide input voltage range for versatile applications

Applications

• Ideal for use in industrial process control systems
• Suitable for machine tools and automation equipment
• Perfect for applications requiring a time-delayed shutdown

Can it provide a stable 12V DC output voltage for sensitive industrial loads?

Yes, the Traco Power DIN rail power supply ensures a stable 12V DC output for reliable performance.

Will it work in rugged industrial environments with high immunity against electrical disturbances?

Yes, the TIS series power supply by Traco Power is designed to work seamlessly in rugged industrial environments.

Is it suitable for applications that require a compact and efficient power solution?

Yes, it is compact, efficient, and designed for industrial applications.

Can it handle a wide input voltage range for versatile usage?

Yes, it can handle input voltages from 93V to 264V AC for flexible applications.

Does it offer a cost-effective solution for various industrial power requirements?

Yes, the Traco Power DIN rail power supply in the TIS series provides a cost-effective and reliable power solution for industrial settings.

Approvals

UL Recognised

Standards

IEC, EN, SELV, UL

TIS Series Instruction Manual

TIS Series Installation Instructions

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
