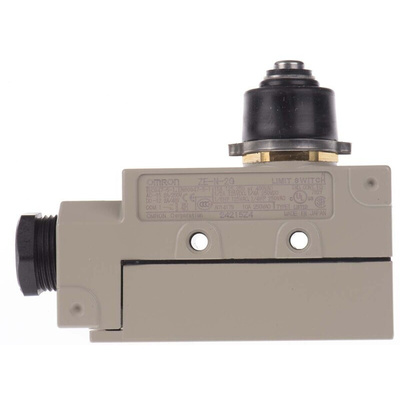

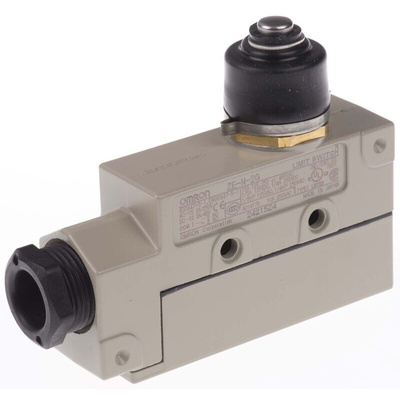

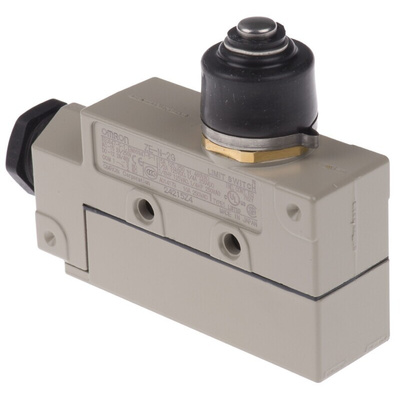

ZE-N-2G, Omron ZE Series Plunger Limit Switch, NO/NC, IP65, SPDT, 480V ac Max, 15A Max

ZE High Capacity Limit Switch

Enclosed limit switch with large breaking capacity
Die cast alloy construction with high mechanical integrity
Ideal for use where dust or particle build up is an issue
Contact configuration: SPDT
Switching capacity 15A, 125Vac inductive load
Connection method: screw terminals
Mechanical life: 10000000 operations minimum
Conduit entry PG13.5

Approvals

UL recognised, CSA

OMRON Limit Switch, 250V DC Maximum Voltage, 50/60Hz Rated Frequency - ZE Series - ZE-N-2G

Need to keep automated movements in line? Choose this limit switch from OMRON. When the plunger comes into contact with an object, the contacts are energised and motion is stopped. As it's a snap-action type, you can count on rapid response times up to 0.5ms. The unit's NO/NC configuration means the circuit remains open until a threshold causes it to close. This makes it ideal for applications like conveyor systems, packaging lines or material handling equipment that call for repeated motion inside predetermined thresholds.

Features & Benefits

• IP65 rating means it's completely dust-tight and withstands water jets from all directions
• Mechanical lifespan of over 10 million operations for dependable performance in the long term
• Performs reliably in temperatures between -10°C and +80°C to suit harsh environments
• Compact dimensions of 71.3 (L) x 86 (W) x 25.4mm (D) ensure it slots neatly into crowded setups

Applications

• Robotics systems
• FMCG manufacturing
• Processing and packaging machinery

Does this unit handle heavy use?

Yes, it copes with up to 120 mechanical operations and 20 electrical operations per minute, so you can depend on it to keep pace with demanding setups.

Approvals

UL; CSA

Brochure - ZE
