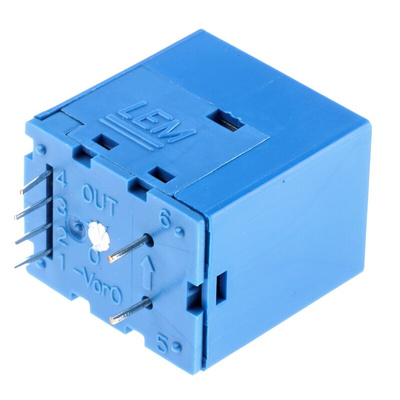

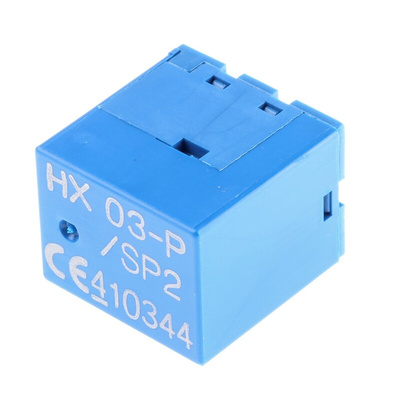

HX 03-P/SP2, LEM HX Series Current Transformer, 3A Input, 0.6mm Bore, 12 → 15 V, Преобразователь тока

HX - P/SP2 Series

Open Loop Hall Effect current transducers with integral primary connections for the accurate measurement of current.

Open Loop (low power consumption)
AC,DC, and mixed signal measurement
Extended measuring range (3xlpn)
Small size
HX 03-20 (23.5x15.8x19mm)
HX 25-50 (20x19x15.4mm)
Multi turn Primary
Unipolar power supply
Operating Temperature Range -25 to +85°C
Supply voltage 12/14Vdc
Load Resistance 2KΩ
Insulation test voltage 3kV
Frequency Bandwidth 50kHz
Body Mat'l UL94-V0
Weight 8g
