E3XNA41F2M, Omron Fibre Optic Sensor, PNP Output, IP50, 12 → 24 V dc, Волоконно-оптический датчик

E3X-NA High Performance

PBT housing, PC cover. IP50
For use with Omron E32 Fibre Optic Cable
High speed version, ideal for labelling and production line applications
Pre-wired versions for single application. Connector versions for multiple amplifier applications to provide wire and connection saving. Master (power and output) and Slave (output only) connectors, available separately see stock nos. 378-8618, 378-8624
See stock nos. 340-976 and 340-960 for suitable fibre optic sensing heads, and 378-8618 and 378-8624 for master and slave connectors
Supply voltage (Vdc): 10 to 24 ±10%
Switching Current (mA): 50
Sensing Distance is typically: 150mm (DC200) 400mm (TC200)
Simple to use potentiometer sensitivity adjustment
Off delay timer 40ms fixed
Light On/Dark On selectable
Short Circuit and reverse polarity protection
Mutual interference protection
LED bar graph user interface for visible indication of optimum setting and alignment
Timer function for pulse stretching for integration with the automation system
Light On/Dark On selectable
Operating temperature range -25° → +55°C (+50°C when banked together)
Dimensions (mm): 10 x 67.3 x 31.6 WDH

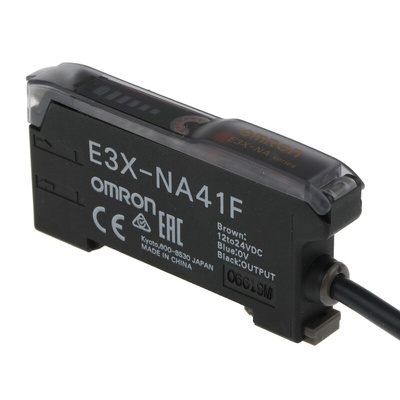

Omron Fibre Optic Sensor, PNP Output, IP50 - E3XNA41F2M

This is an AC/DC fibre-optic sensor with a PNP configuration. It features a potentiometre for manual adjustment, making it easy to fine-tune for specific applications. The sensor provides a bar graph display for self-explanatory monitoring of light levels. Its compact design reduces wiring and space requirements, making it suitable for various industrial environments. Additionally, the optical communication feature prevents mutual interference.

Features & Benefits

• Offers a rapid response, enabling quick detection and reliable operation
• The built-in potentiometre allows fine-tuning, ensuring optimal sensor performance
• The PNP output simplifies integration with other devices and control systems

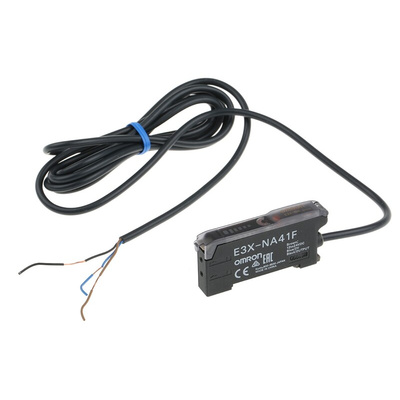

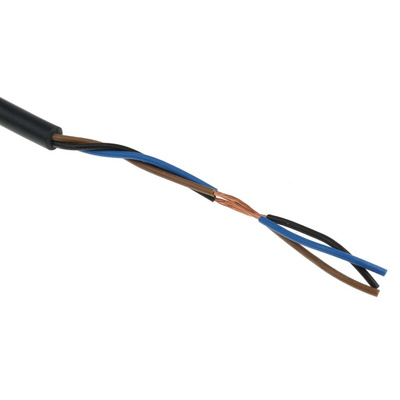

• The pre-wired 2-metre cable provides convenient connectivity, reducing installation time

Applications

• Ideal for detecting objects in various industrial processes
• It can be used in automation systems for reliable presence sensing
• The amplifier contributes to quality control by accurately detecting objects or parts

Can I adjust the sensitivity of the E3XNA41F2M?

Yes, the potentiometre allows manual adjustment of sensitivity to suit specific applications.

What power supply voltage does it require?

The E3XNA41F2M operates on a power supply voltage of 12-24 V.

Is it suitable for harsh environments?

The E3XNA41F2M has an IP50 degree of protection, making it suitable for most industrial settings.
