6.130.012.850, Kübler Kubler CODIX 130 Counter, 8 Digit, 7kHz, 3.6 V Battery, Счетчик

Kubler Counter

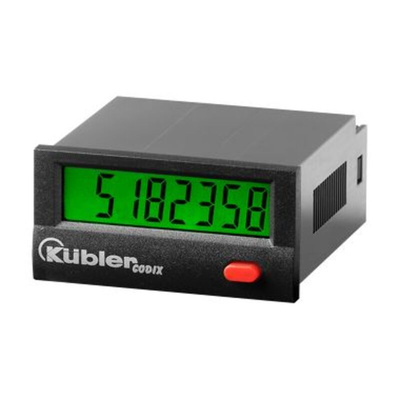

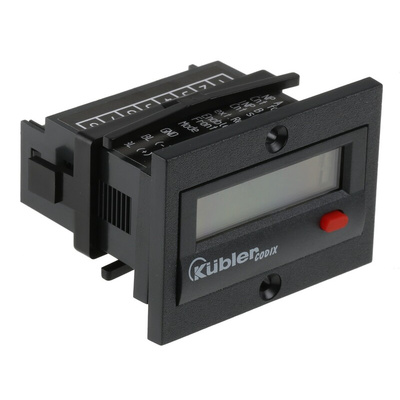

The Kubler CODIX 130 series digital counter is a battery-powered pulse counter for fast and slow count pulses. It has an 8-digit LCD display and without backlighting for NPN and high voltage application range between 0VDC and 0.7VDC. It supports various counting modes like easy, up/down, differential and phase-clock even with pulse doubling for connection to incremental encoders. This counter has a maximum count frequency of 7kHz and operates on 3.6VDC battery.

Features and Benefits

Count direction adding and subtracting via control input
Very good readability due to leading zero blanking
Bi-directional counting
Easy and safe connection due to screw terminals
Reset key lockable via the input ’Reset Enable’
Easy to use
no programming required
For positive and negative counting edges, depending on the version
Panel cut out dimensions are 22.2mm x 45mm

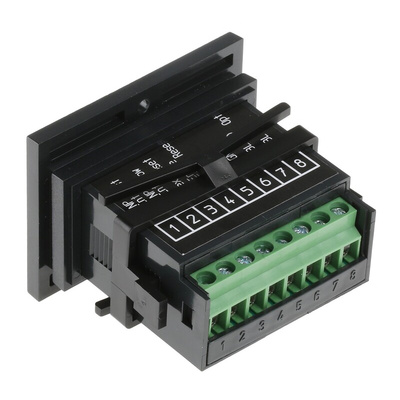

Easy and safe connection due to screw terminals
Operating temperature ranges between -10°C and 60°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP65 rated
EN 55011 class B
EN 61000-6-2

6.130.012.850 Datasheet

Operating Instructions(Multi
