X401-18RS, Moflash X 401 Xenon Beacon, 12 V dc, 24 V dc, Flashing, Surface Mount, Маячок

Moflash Beacon

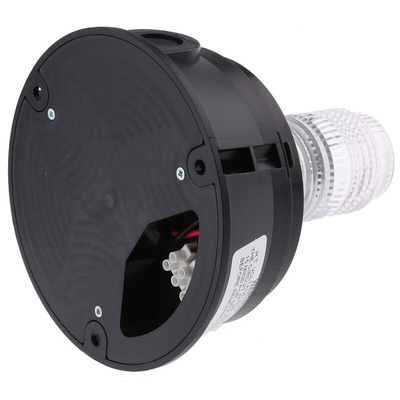

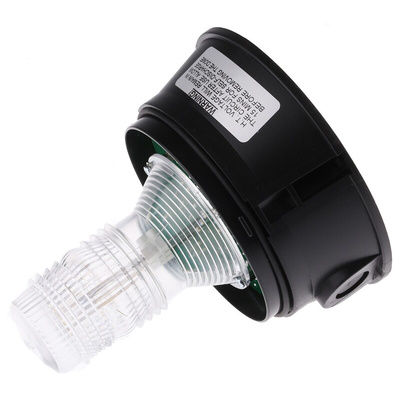

The Moflash xenon beacon is suitable for security and general industrial signalling applications where a more robust and powerful signal is required. Ths flashing mode range of beacon incorporates an internal Fresnel lens, designed to maximise the light intensity and has a double flash option (activated by a slide switch on the PCB) that extends the signal duration making it more noticeable to the human eye. It is controlled via a PCB and puts out a very brief but very bright flash of white light by ionizing and then discharging a large current through the xenon gas.
Note
Lens must be ordered separately (typical stock no. 286-9031)

Features and Benefits

The supply voltage is 12VDC/24VDC(12VDC/24VDC)
Internal dioptric lens to enhance visual light output by 20%
Single or double flash in one unit
Continuously rated
High light output
Flashy bright 10.0J/7.5J xenon signal
Suitable for surface or wall mounting
Optional wall bracket and guard available
3-point fix
M20 side-entry or bottom cable entry
360° light output around the vertical axis
180° light output above the horizontal axis
Dustproof and weatherproof
UV stable polycarbonate lens and ABS plastic base
Height is 205mm and base diameter is 150mm
Operating voltage ranging between -25°C and 55°C

Applications

Refuge trucks
Utility vehicles
Agriculture
Plant and contracting,
Fleet vehicles
Industrial
Commercial buildings

Certifications

IP65 rated
CE certified
