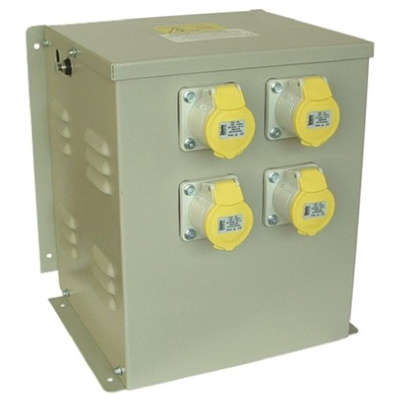

CM5000/WM4, Carroll & Meynell 5000VA Site Transformer, 230V ac Primary, ± 55V ac Secondary, 31.81A O/P, Трансформатор

Single Phase, 230Vac Input, 110Vac Output Transformers

High quality wall mounting safety isolating transformers designed to ensure safe electrical distribution for power tools etc in industrial, garage and other fixed installations.

Double wound
110V secondaries centre tapped to earth to minimise shock risk
Sheet steel IP22 type wall mounting enclosure
Re settable thermal cut out trip in primary circuit to prevent overload
Thermal safety overload fuse embedded into primary winding
20mm conduit entry on both sides of case

Note

Tool rating is defined in BSEN 61558-2-23 as 5 minutes on and 15 minutes off. Maximum output must not exceed 16A per socket outlet.

Standards

BSEN 61558-2-23

Product Specifications

CM5000/WM4 Drawing
