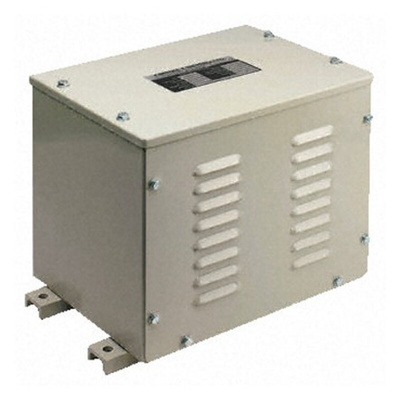

CMA30K/FM0, Carroll & Meynell 30kVA Autotransformer, 380 V, 400 V, 415 V Primary, 380 V, 400 V, 415 V Secondary, Bobbin Core

Carroll & Meynell 3 Phase Autotransformers

From Carroll & Meynell, these 3 phase autotransformers have been designed for use as European supply conversion transformers for 380 V, 400 V and 415 V. These autotransformers can be used to operate machinery on one standard EU voltage from either of the other two standard voltages.

Features and Benefits:

Provided with star-point neutral termination
Features constant load rating
Heavy duty vented sheet steel enclosure with an IP22 rating enables for indoor use
25 mm conduit entry on both sides of the case
Internal M5 stud terminals
Input: 380/400/415 V ac, Output: 380/400/415 V ac

Warning

These units do NOT provide isolation from the mains.

Standards

BSEN 61558-1
