40T96-4-00-RR00-301 (EX 40T96-4-00-RR031, Gefran 40T96 On/Off Temperature Controller, 96 x 48mm, 1 Output Relay, 100 → 240 V ac/dc Supply Voltage, Контроллер

Gefran Process Indicator

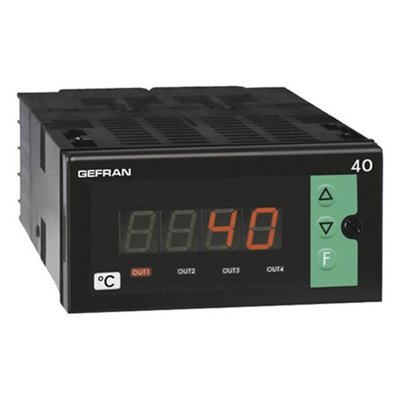

The Gefran 40T96 series temperature controller has a supply voltage rating ranging from 100VAC/DC to 240VAC/DC. This latest invention controller has a width of 48mm and a height of 96mm. This process indicator has universal input and two relay outputs. The instrument has a Lexan membrane faceplate that has 3 keys, a 3/4 digit display format and 4 indicating LED for the output statuses.

Features and Benefits

2 configurable alarm outputs and a normally open contact (N/O)
4mA to 20mA recopy output or with 4mA to 20 mA sensor supply and recopy
Identification of temperature probe cut-out or short circuit
Indication of over or under-scale measurement for linear inputs
Indication of the size measured by an adhesive label on the front face (for most common physical units)
The model with 4mA to 20 mA sensor power supply and recopy features a 3rd output relay
Universal process indicator that is fully configurable with linear input signal range, thermoresistance, thermocouple, or thermistor

Applications

Air conditioning
Food processing equipment
Humidity switches
Industrial refrigerators
Mould cooling units
Thermostats

Certifications

CE certified
IP65 rated
UL approved

Datasheet 40T 96
