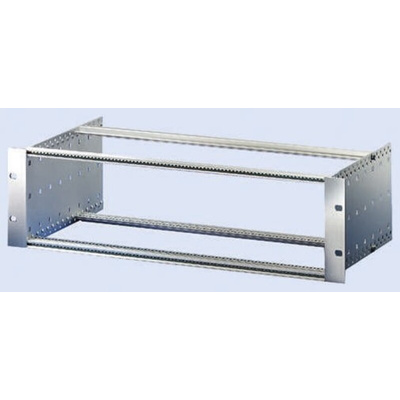

24563-131, nVent SCHROFF EuropacPRO Series 3U Aluminium, Stainless Steel Rack Mount Chassis, 84HP, 175mm Depth, Блочный каркас

84HP Unshielded Sub-rack

Lightweight and aluminium construction
Horizontal rails optimised for optimum air flow and heat dissipation
Horizontal rails and mounting flanges anodised aluminium extrusions. Side panels clear chromate aluminium, 2.0mm thick
Contact surfaces electrically conductive
Standards: IEC 60297-3/DIN 41 494-5, earthing to IEC/EN 60950
Delivery contents: Four horizontal rails, two side panels, two mounting flanges, four threaded inserts with 6U x 6, two insulating strips with 6U x 4, one horizontal rail centre rear only 6U and one assembly kit
For a 19" Europack Pro fixing kit order Stock No.291-8644
Front Panels ordered separately

Note

If a back plane is mounted to the rear horizontal rail, the insulating strips can be used as an intermediate layer. If IEC 60602-3\\DIN 41612) connectors are fitted, additional perforated rails have to be mounted to the insulating strip of the rear horizontal rail.

Note

If a back plane is mounted to the rear horizontal rail, the insulating strips can be used as an intermediate layer

Europac Pro

Highly flexible 19" Sub-rack Range

Datasheet
