M630A, Gossen Metrawatt METRAOHM 413 9V Ohmmeter, Maximum Resistance Measurement 200 Ω, Resistance Measurement Resolution 10mΩ, Омметр

4375932
Номер производителя: M630AПроизводитель: Gossen Metrawatt
Цена за шт.
129000.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

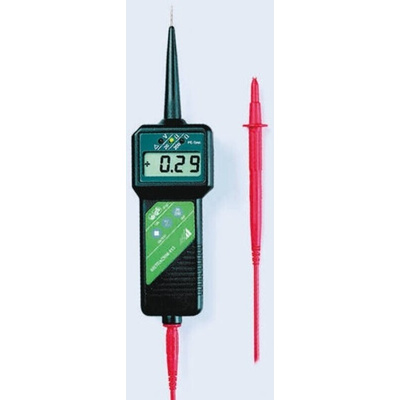

Gossen Metrawatt Low Resistance Ohmmeter

The Gossen Metrawatt digital ohmmeter is a battery-powered instrument for the measurement of low-value resistances up to 200ohm in electrical systems. Large protective conductor, earthing, equipotential bonding and lightning protection systems can also be tested quickly and safely with the help of this device. Resistance is measured between reference earth (e.g. an equipotential bonding strip) and any desired points to this end. A measuring current rating of 200mA (in the 20ohm range) and automatic functions assure reliable measuring results.

Features and Benefits

Compact and durable for rugged service calls and laboratory use
Indication of interference voltage
Measurement cable zero balancing
Offset Balancing
Measuring ranging between 0.01ohm and 1999kohm
Overvoltage protection protects the instrument in the event of inadvertent connection to mains voltage

Applications

Fuse and cable resistance
Instrumentation systems
Relays power contactors and load interrupters
Transformers, coils and small motors

Certifications

EN 50081-1
EN 50082-1
EN 61557-1
EN 61557-4
IEC 60529
IEC 61010-1
IP65 rated

Техническая спецификация
pdfMETRAOHM®413 Low-Resistance Ohmmeter
pdfMETRAOHM413 Low impedance resistance meas. instrument
Вес:
180гр
Высота:
40мм
Длина:
60мм
Измерение максимального сопротивления:
200 Ом
Источник питания:
Батарея
Максимальная точность:
+1.5% + 4 символа
Минимальная точность:
±1.5% + 4 знака
Модель р:
METRAOHM 413
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-10°C
Разрешение измеряемого сопротивления:
10мОм
Тип батареи:
Ширина:
230мм
