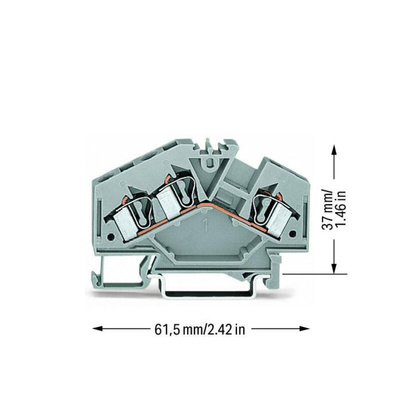

281-631, Wago 281 Series Grey Feed Through Terminal Block, 4mm², Single-Level, Cage Clamp Termination

Feed-through connections

Feed-through terminal blocks with cage clamp® connection.

Features and Benefits

• DIN Rail type TS 35
• 3 conductors (1 input, 2 outputs)
• Quick connection using cage-type springs, not affected by impact and vibration
• For rigid, semi-rigid and flexible conductors
• Front wiring

870 Series

Compact screwless DIN rail mount terminals suitable for use with TS35 ’Top Hat’ rails. The compact size of the terminal is possible due to the new cage clamp designed to satisfy the need to reduce cabinet space on site.

Accept cables 0,08 - 2,5 mm²/4 mm² flexible wire
Front cabling enables further space saving
Rated at: 500V/6kV/24A
Jumper bar rated current: 18A
Suitable marker cards and labels also available (each pack contains 5 cards, with 100 markers per card)

Din Rail Mounting Terminal Block Data Sheet
