RS PRO Natural Nylon Rod, 500mm x 150mm Diameter, Стержень

RS PRO Natural Nylon Rod, 500 mm x 150 mm Diameter

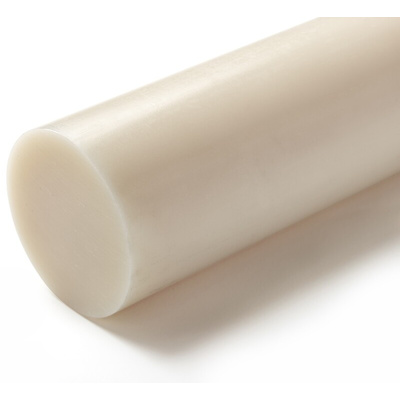

This nylon rod from RS PRO is natural in colour and measures 500 mm in length by 150 mm in diameter. It's suitable for use in a number of industries, particularly those involving harsh environmental conditions.

Unlike extruded nylon rods, this cast nylon rod is free of internal stresses, so it offers high impact resistance and high tensile strength of 85 MPa when dry. It's resistant to chemicals, acids, alkalis and abrasion, and is suitable for use at temperatures up to +180°C.

The rod has been tested to ensure compliance with international safety and quality standards. With a flammability rating of UL 94 HB from Underwriters Laboratories, it's self-extinguishing in case of fire. It also complies with Deutsches Institut für Normung (DIN) standard DIN 50 014 for corrosion resistance.

Thanks to its durability, this nylon rod is useful for heavy-duty industrial applications such as bearings, brushes and gears.

Features and Benefits

• Nylon rod
• Natural in colour
• Made from cast nylon 6
• Length of 500 mm
• Diameter of 150 mm
• Density of 1.15 g/cm³
• Tensile strength of 60 MPa when wet and 85 MPa when dry
• UL 94 HB flammability rating so it's self-extinguishing
• Maximum operating temperature of +180°C
• Elongation of 50%
• M 90 Rockwell hardness rating
• Conforms to DIN (Deutsches Institut für Normung, or the German organization for standardization) 50 014 standard for corrosion resistance
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

DIN 50 014

RS Pro Datasheet
