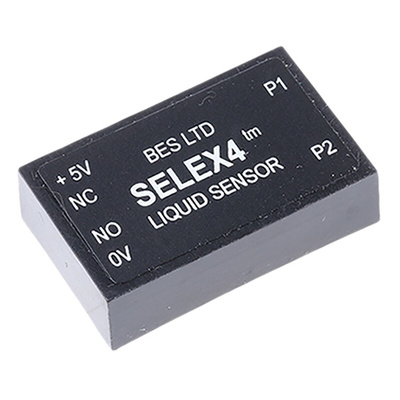

SLX4, Tempatron Level Probe NPN Output

Selex™ PCB Mount Liquid Sensors

For use with either standard or OEM designed metallic electrodes, one of which can be the liquid container
Uses metallic probes to sense liquid by detecting free ions
High immunity to probe deposits

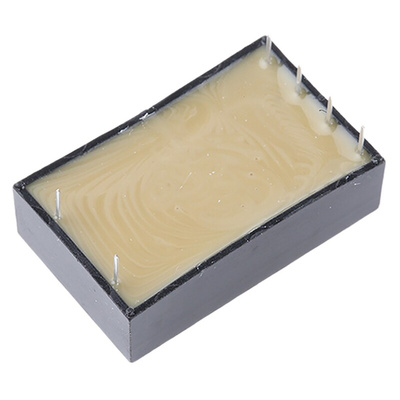

PCB mounting, high or low liquid level sensing
Built in delay to avoid spurious switching
Full galvanic isolation

Note

230V high and low level versions have a full-wave-rectified dc output which can be used to directly drive small relays or solenoids (maximum inrush 20VA), and built-in time delays to avoid spurious switching.

Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.

Application Examples

Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels

Selex Liquid Level Sensors

SLX4-Datasheet
