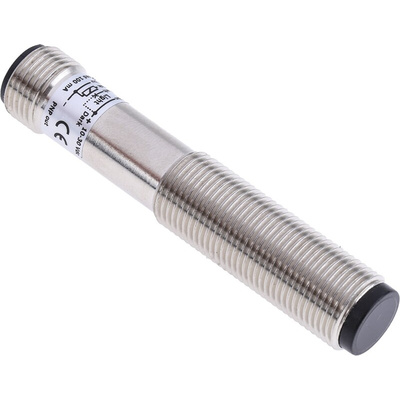

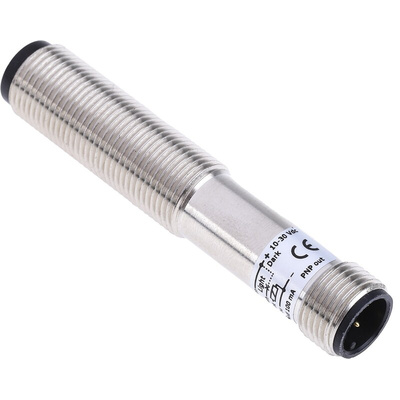

RS PRO Diffuse Photoelectric Sensor, Barrel Sensor, 100 mm Detection Range, Фотоэлектрический датчик

RS PRO Photoelectric Sensor Diffuse 100 mm Detection Range NPN/PNP

This compact diffuse sensor from RS PRO is well-suited for automated processes, with all components contained in a single housing. Diffuse sensors are used to detect the fill levels of containers, determine an object's orientation and detect multiple objects on a conveyor system. They can detect objects up to 100 mm away.

This sensor has adjustable sensitivity, which makes it a versatile tool. Dual colour LEDs indicate the sensor's status, while a visible red light aids alignment. The sensor is housed in a corrosion-resistant, nickel-plated brass body. In addition to an IP67 rating for water resistance, it has inbuilt short-circuit protection. It's supplied with a mounting bracket and an M12 plug-in connector.

The product is CE-certified and UL-listed. It also conforms to standards E348498 and NRKH7 as a safe and effective photoelectric sensor.

Features and Benefits

• Photoelectric sensor
• Diffuse sensor
• Barrel style

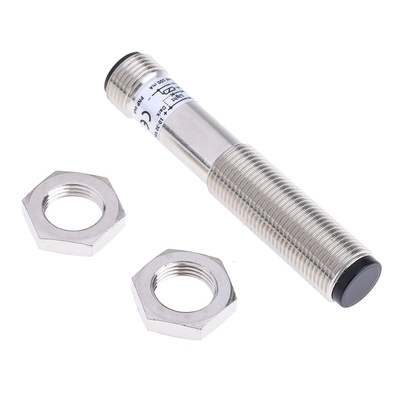

• 4-pin M12 connector (M12 locking nuts provided)
• Flange mounting
• Detection range of 100 mm
• Maximum DC voltage of 30 V
• Maximum current of 100 mA
• Response time of 625 μs
• Housing material of nickel-plated brass
• IP67 rated as water-resistant
• Length of 66 mm
• Minimum operating temperature of -25˚C
• Maximum operating temperature of +70˚C
• NPN/PNP output
• Infrared light source
• Reverse polarity and short-circuit protection
• CE-certified and UL-listed
• Complies with safety standards E348498 and NRKH7
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
