3.060.200.383, Kübler HK 47.20, 7 Digit, Counter, 4.5 → 35 V dc, Счетчик часов

Kubler Hour Counter

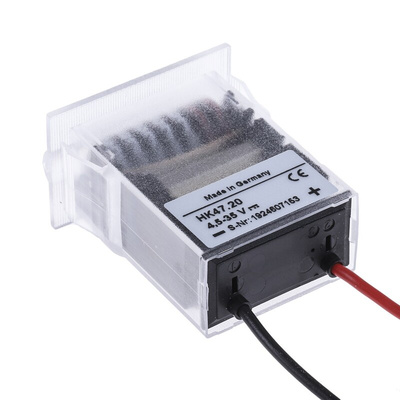

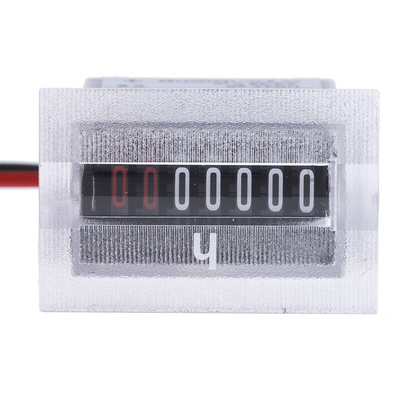

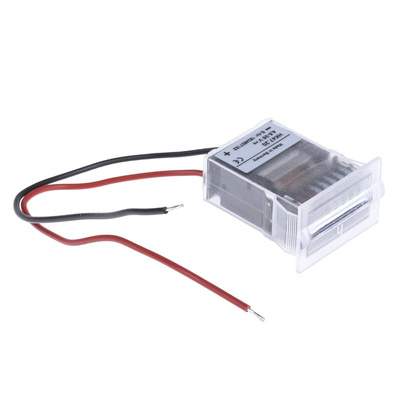

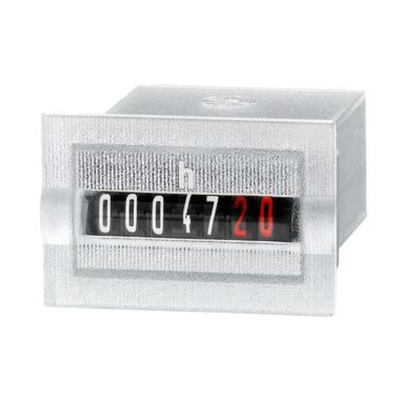

The Kubler HK 47.20 series micro hour counter is a 7-digit panel mount meter with a wire lead connection and has an integrated spring clip. It has a supply voltage rating ranging between 4.5VDC and 35VDC. This device is pulse-driven, precision crystal controller via an electronic divider circuit. This non-resettable counter is robust and extremely tamper-proof.

Features and Benefits

Low cost
High shock resistance
Magnified large figures
Wire lead connection
Solderable and wash-proof
Data retention in case of power failure
Long service life
Low power consumption
Cut-out dimensions are 27mm x 14mm
Measurement range is between 0 and 99999.99
Operation temperature ranges between -10°C and 60°C

Applications

Instruments (respiration units, oxygen, dialysis)
Small appliances
UV lamps
Display panels
Time registration

Certifications

IP65 rated
EN 55011 class B
EN 61000-6-2
