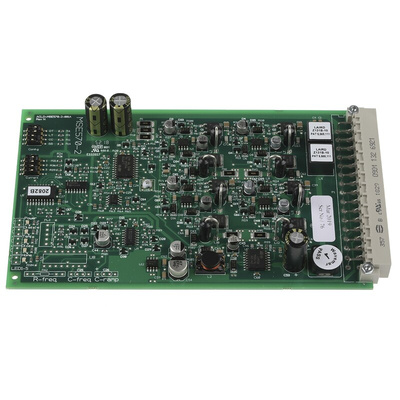

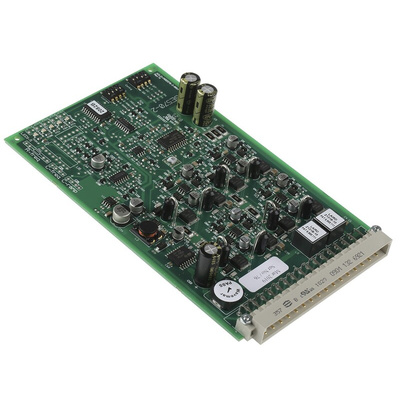

McLennan Servo Supplies MSE570 EVO 2 Stepper Motor Controller 3.5 A, 15 → 48V dc, 160 x 100 x 35.5mm

4410265
Номер производителя: MSE570 EVO 2Производитель: McLennan Servo Supplies
Цена за шт.
79035.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Slimline Bipolar Stepper Motor Drive

Drives motors up to 40V at 3.5A
Adjustable drive current settings from 0.5 to 3.5A
Output overload protection
Synchronisation output for multi-axis systems
Full and half step drive modes
TTL & CMOS compatible control interface
Output disable input
5 & 12Vdc auxiliary outputs for external device energisation
Status LED's for condition monitoring
Provision for assembling on-board oscillator with ramp, low and high speed ranges
Single rail power supply for both motor drive and logic supplies

Note

Suitable for use with motors: stock nos. 432-8273, 440-442, 440-464, 440-470, 191-8328, 191-8362, 191-8378, 191-8384, 340-3711, 340-3727 and 340-3733

Техническая спецификация
pdf19-mse570 evo 2 Technical Specs
pdfBipolar Stepper Motor Drive Board Instruction Sheet
pdfBipolar Stepper Motor Drive MSE570 EVO 2
Габаритная ширина:
100мм
Длина общая:
160мм
Номинал тока:
3.5 A
Общая глубина:
35.5мм
