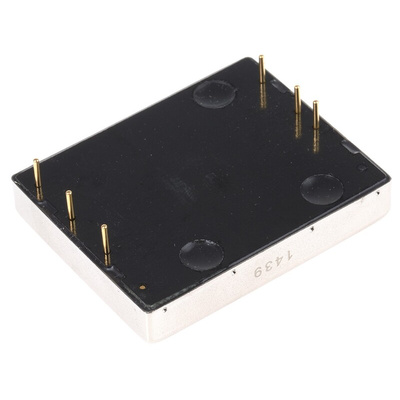

TEN 25-1211, TRACOPOWER TEN 25 DC-DC Converter, 5V dc/ 5A Output, 9 → 18 V dc Input, 25W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Traco 25W & 30W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 25 Series

5W & 30W single/dual output regulated isolated DC-DC converter modules with a high power density and input voltage range. These regulated isolated DC-DC converter modules have a high efficiency which enables a safe operating temperature range of -40°C to +71°C. Typical applications for these regulated isolated DC-DC converters include industrial electronics, battery operated equipment and distributed power systems.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Wide 2:1 input range
Continuous short circuit protection
Input filtering to EN 55022 Class A and FCC Level A without external components
Remote on/off
Shielded metal case with insulated baseplate
Industry standard-pinout

Standards

UL /cUL 60950, IEC/EN 60950 compliance up to 60 VDC input voltage (SELV limit)

Approvals

cUL/UL , IEC/EN, CSA File No. 226037

Traco Power DC-DC Converter, Overvoltage Protection, Remote On/Off - TEN 25 Series - TEN 25-1211

Looking for a power regulation workmate for your high-power system that stays true in the thick of things? Choose this DC-DC converter from Traco Power. It comes in a durable nickel-plated copper housing, so it doesn't yield to corrosion, giving you dependable performance in harsh environments. This unit creates a barrier of up to 1.5kV DC between your input and output, preventing linked components from getting hit by sudden power surges to ensure safe operation. Also keeping safety high on the agenda, the converter has a non-conductive FR4 baseplate, so you're covered from any surprises during use.

Features & Benefits

• Wide operating temperature range between -40°C and +85°C for use in challenging conditions
• 25W power rating makes it suitable for use in high-power systems
• MTBF of more than 550,000 hours for long-term performance
• Lead-free, so there'll be no toxic fumes during soldering

Applications

• Automotive industry
• Agricultural equipment
• Material handling machinery

How efficient is this DC-DC converter?

The unit is 84% efficient, which means it makes the most of the energy supply and loses little to heat. This eliminates the need for a heat sink, giving more room for other components on your circuit board.
