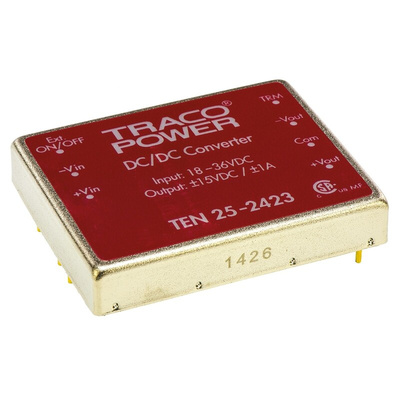

TEN 25-2423, TRACOPOWER TEN 25 DC-DC Converter, ±15V dc/ ±1A Output, 18 → 36 V dc Input, 25W, Through Hole, +85°C Max Temp, Преобразователь

Traco 25W & 30W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 25 Series

5W & 30W single/dual output regulated isolated DC-DC converter modules with a high power density and input voltage range. These regulated isolated DC-DC converter modules have a high efficiency which enables a safe operating temperature range of -40°C to +71°C. Typical applications for these regulated isolated DC-DC converters include industrial electronics, battery operated equipment and distributed power systems.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Wide 2:1 input range
Continuous short circuit protection
Input filtering to EN 55022 Class A and FCC Level A without external components
Remote on/off
Shielded metal case with insulated baseplate
Industry standard-pinout

Standards

UL /cUL 60950, IEC/EN 60950 compliance up to 60 VDC input voltage (SELV limit)

Approvals

cUL/UL , IEC/EN, CSA File No. 226037

Approvals

UL 1950; EN 60950

TEN 25-2423 Datasheet

Industrial Power Solutions Catalogue

Selection Guide
