RS PRO Distribution Block, 12 Way, 16 mm², 25 mm², 50 mm², 160A, 500 V, Clear, Распределительный блок

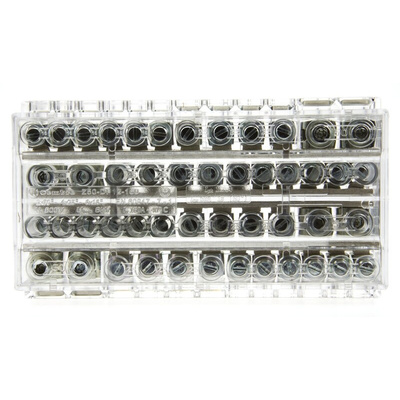

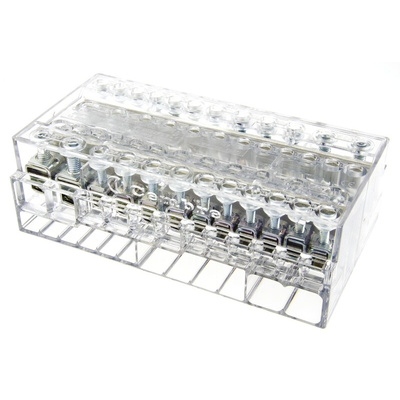

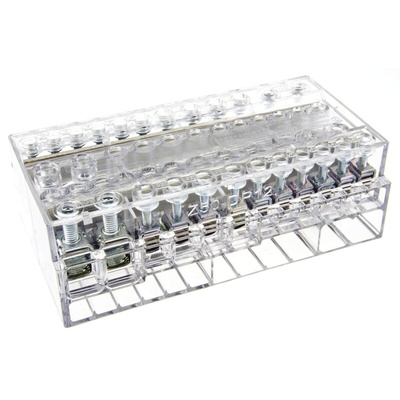

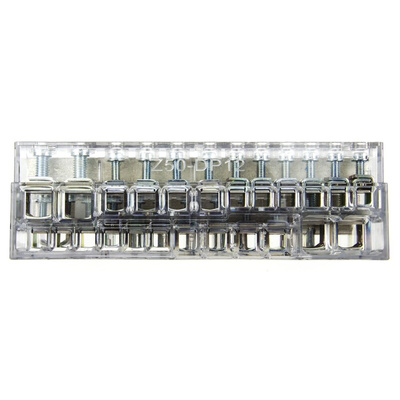

RS PRO 12-Way Distribution Block, Clear, 160 A, 500 V

This RS PRO distribution block provides an economical and efficient way to supply power from a single source to several devices at once. You simply attach the power source to the input side, which connects to the other components through the distribution block, removing the need to wire each device separately.
The block also acts as a feeder circuit to isolate short circuit incidents. This helps prevent failures and reduce the risk of electrical hazards, ensuring you avoid complete shutdowns across all the attached devices.
The polyvinyl chloride (PVC) housing is resistant to weathering and chemicals, making the block a durable choice that can withstand harsh industrial or outdoor environments. It's also non-conductive, so it will insulate and protect your power supply. For easy installation, the DIN rail mounting brackets, fixings, and identification labels are all included.

Features and Benefits

• Suitable for cable cross-sectional areas (CSAs) of 16 mm², 25 mm², 50 mm²
• Clear in colour
• Current rating of 160 A
• Height of 48 mm
• PVC housing material
• Length of 150 mm
• 12-way connection
• Screw down termination method
• Voltage rating of 500 V
• Width of 84 mm

RS Pro Datasheet
