S1125-KIT-8-RS, TE Connectivity S1125 Series 1-Piece Adhesive Kit, Комплект

Chemical and Heat-Resistant Adhesive Kits

From TE Connectivity, the S1125 high performance two-part epoxy adhesive kits offering excellent chemical and heat resistance properties. Developed for use with the system 25, 100 and 200 cable harnessing ranges. The S1125 adhesive kits are ideal for use with heat shrink tubing, moulded parts adapters and fittings. Perfect for service and repair of equipment and new installations.

Features and Benefits

• Excellent chemical and heat resistance
• Easy to use, requires no mixing
• 1 to 2-hour pot life at room temperature
• Superior surface adhesion
• Cures at room temperature in 24 hours and in 1 hour at 85˚C
• Wide operating temperature range -55˚C to + 150˚C
• Produces minimal amount of waste

Applications

S1125 flexible two-part epoxy can be used in a wide range of industrial and high specification applications. They are particularly useful in areas where tubing and moulded parts need to have high-temperature fluid resistance and long-term heat resistance. Ideal for harsh environments where a waterproof seal is required. Some of the most common are

• Automotive wiring harnesses
• Military ground vehicles
• Marine and offshore installations

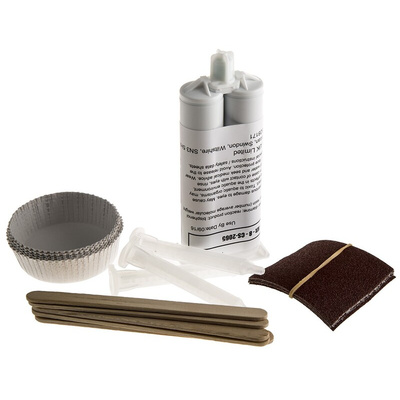

What’s included in the kits?

S1125-KIT -8 contains the following components;
1 x 50 ml dual syringe & 3 mixing nozzles
5 x mixing sticks
5 x mixing cups
5 x abrasive patch
1 x instruction leaflet

S1125-KIT-1 contains the following components
5 x 10g sachets
5 x mixing sticks
5 x mixing cups
5 x abrasive patch
1 x instruction leaflet

FAQ

Q: Are there any recommended products?
A: Yes, RS Components offer an extensive range of heat shrink tubing and moulded parts that are compatible with the S1125 high-performance epoxy adhesive kits.

System 25 = DR25 Heat Shrink Tube in various lengths and diameters (mm) and -25 moulded parts in various shapes and sizes
System 100 = ZHTM Heat Shrink Tube in various lengths and diameters (mm) and -100 moulded parts in various shapes and sizes
System 200 = RW-200 Heat Shrink Tube n various lengths and diameters (mm) and -12 moulded parts in various shapes and sizes

Raychem S1125 and S1264 Adhesive (EN - SDS)

Adhesives Guide

Application Note of S1125 Adhesive

S1125 - Chemical and Heat-Resistant Adhesive Datasheet

Contains: Toluene - Restricted to Professional Users

Restricted to Professional Users Only
