S8VS-06024, Omron S8VS Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 2.5A Output, 60W, Блок питания

60W to 240W S8VS Series Power Supplies

A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

60/90/120/180/240/480-W Models

•90-W models have an indication monitor that conforms to UL Class 2 Output standards
•New models with screwless terminal blocks and indication monitor
•3-digit, 7-segment status display

Note

Approvals

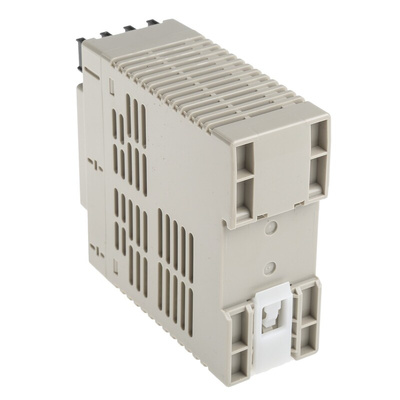

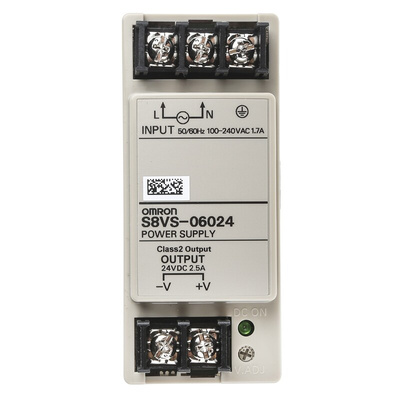

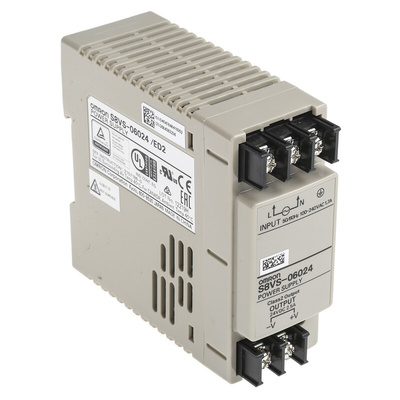

Part Number S8VS-06024

The S8VS Switch mode, Din Rail mounted power supply is a covered type, screw terminal block. S8VS-06024 has a power rating of 60 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 240 V ac. This Standard model incudes green output indicators plus is natural air cooling. The S8VS-06024 does not have an indication module.

Features and Benefits.

•Covered type power supply
•Screw terminal
•Design stops screws from falling out of the terminal block
•Switch mode
•DIN Rail Mounted
•Green output indicators
•Natural air cooling
•Power rating 60 W
•Output voltage 24 V dc
•Input voltage 100 V ac to 240 V ac
•Rated output current 2.5 A
•Efficiency 83% min.
•Frequency 50/60 Hz
•RoHS compliant including Lead Free construction
•Weight 330 g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.
Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.
Shock resistance150 m/s **2 in each directions 3 times.

Standards

Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0200 (when 200 V input is used)
UL 508 (Listing; Class 2 Output: Per UL1310)
UL 60950-1 (Recognition), UL63268-1
CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No. 223)
CSA C22.2 No.60950-1 (cUR)
EN 50178, EN 60950-1, EN62368-1
EAC mark, RCM mark

VDE 40000848
