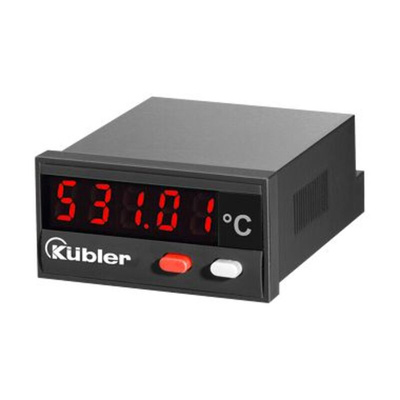

Kubler Temperature Indicator
The Kubler CODIX 531 series temperature indicator has a supply voltage rating ranging from 10VDC to 30VDC. This controller has a width of 48mm and a height of 24mm. This indicator is the latest invention with Pt100 and Ni100 resistance thermometer. This 1/32 DIN indicator has a compact and a low-price temperature display, modern industrial design, along with easy programming and operation.
Features and Benefits
Temperature display in °C or °F
Minimum and maximum value detection for temperature monitoring over long periods of time
Galvanic isolation with protection against incorrect polarity
Screw terminal connection is pitch 5mm
Display hold input
5 measurements per second (display refresh 1 to 2 times per second)
Current consumption is maximum 40mA
Decimal point selectable
Reverse polarity protection
Resolution is 0.01°C (0.1°F) or 1°C (1°F)
Accuracy is PT100 0.1%, Ni100 0.2%
Temperature drift is 0.01K/K ambient
Operating temperature ranges between -20°C and 65°C
Built-in depth is 59mm
Display range is from 19 999 to 99.999
14bit resolution
Applications
Heater
Fan
Certifications
CE certified
IP65 rated (front side)
EN 55011 class B (emitted interference)
EN 61000-6-2 (immunity to interference)
6.531.012.300 DatasheetOperating Instructions| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
