62GB-12E14-12SN, Amphenol Limited Amphenol, 62GB 12 Way Box Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 14, Bayonet, Разъем

Panel Receptacles

Amphenol 62GB miniature bayonet lock square flange receptable connectors are incredibly durable and versatile, manufactured from solid aluminium bar, with a zinc cobalt olive drab finish and complete with solder bucket gold plated male or female contacts and with inserts of polychloroprene rubber. The Amphenol 62GB range of mil spec connectors are similar in design and function to MIl-DTL-26482 but with an added keyway that assists in preventing the mis-mating of the connectors.These durable square flange receptacle connectors are resistant to harsh environments and extreme temperatures, 62gb receptacle connectors are ideal for use in many military and industrial connector applications.

Note

Size 16 contacts, except for stock no. 442-2038 which has 8 size 16 and 4 size 20 contacts.

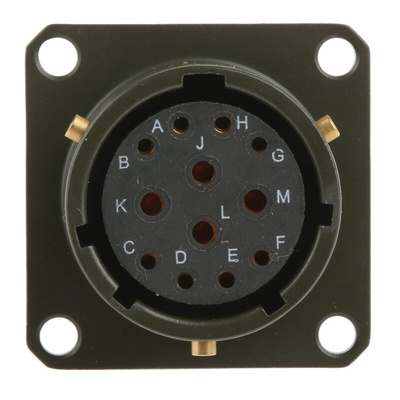

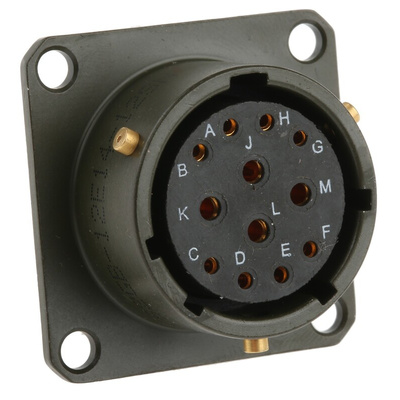

Amphenol 62 GB Series, 12 Way Signal Connector Socket, Size 14

From Amphenol, this 62 GB Series miniature connector is incredibly durable and versatile, and made to the stringent demands of the MIL-DTL-26482 military standard. Featuring a bayonet locking system for an assured connection, this box-mounted 12 way socket boasts a high degree of environmental protection when mated.

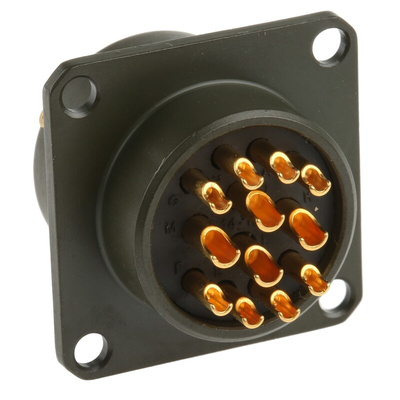

The MIL spec socket is constructed from solid aluminium bar with a zinc cobalt olive drab finish, which ensures a high resistance to corrosion. The socket has polychloroprene rubber inserts, and is also supplied complete with solder bucket gold plated socket contacts.
The 62 GB range of connectors are similar in design and function to MIl-DTL-26482, but with an added keyway that helps prevent the mis-mating of the connectors.

Features and Benefits

• Shell Size 14
• Insert Arrangement: 14-12
• Bayonet Locking mating system
• Keyed to prevent mis-mating
• Environmentally Sealed
• Mechanical Life of 500 operations
• Contact Resistance: 5 mΩ max.

Application Information

Environmentally sealed, this durable receptacle connector is resistant to harsh environments and extreme temperatures. 62 GB plug connectors are ideal for use in many military and industrial connector applications. Box-mounted / Chassis-mounted sockets will only mate with cable-mounted plugs.

Standards

RS MIL-C-26482; BS 9522 F0017
