3.100.200.383, Kübler Kubler HK 07 Counter, 7 Digit, 4.5 → 35 V dc, Счетчик часов

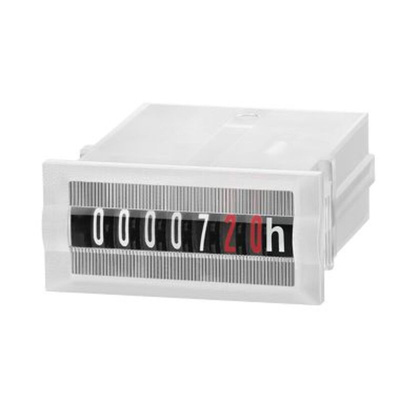

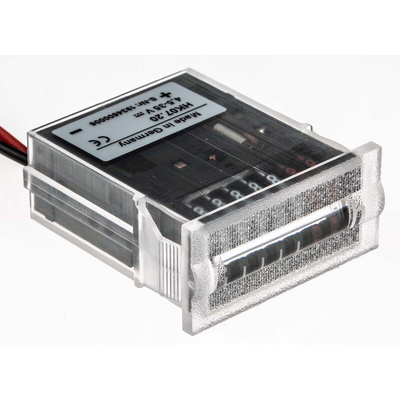

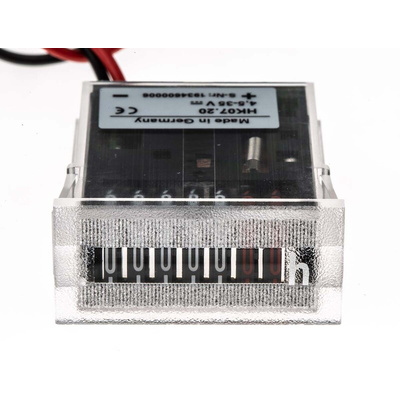

Kubler Digital Hour Meter

The Kubler HK07 series micro hour meter is a 7-digit, panel-mount counter with wire lead connection. It has a supply voltage ranges between 4.5VDC and 35VDC. This is a pulse-driven, precision crystal controller via an electronic divider circuit. This non-resettable counter is robust and extremely tamper-proof.

Features and Benefits

Height of figures is 4mm

Low cost
High shock resistance
Magnified large figures

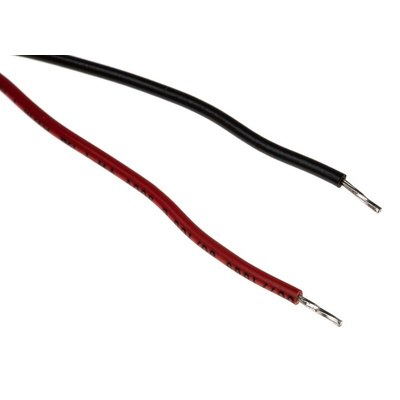

Wire lead connection
Solderable and wash-proof
Data retention in case of power failure
Long service life
Display decimal digits are red and others white
Measurement range is between 0 and 99999.99
Operation temperature ranges between -10°C and 60°C

Applications

Instruments (respiration units, oxygen, dialysis)
Small appliances
UV lamps
Display panels

Certifications

IP67 rated

3.100.200.383 Datasheet
