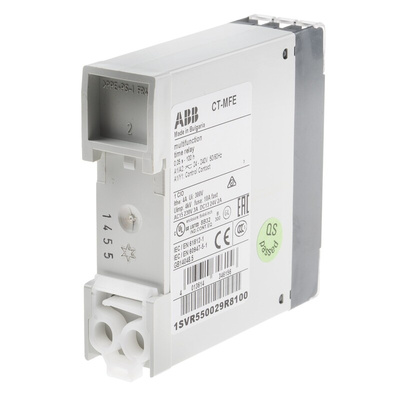

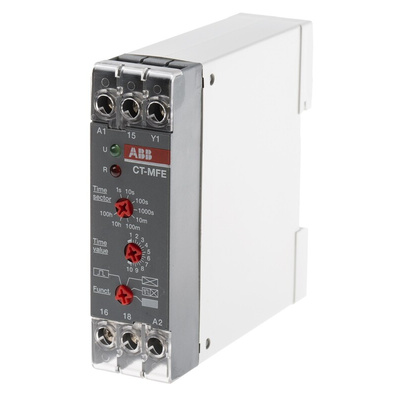

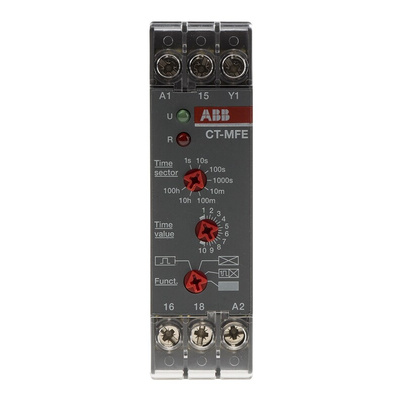

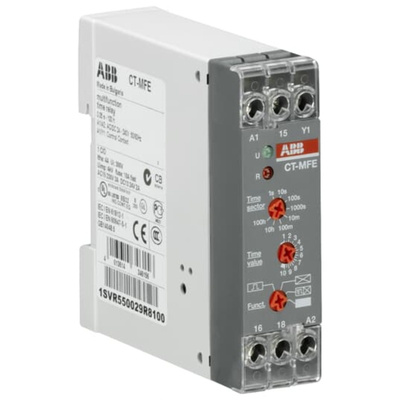

1SVR550029R8100, ABB DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.05 s → 100h, SPDT

ABB Timer Relay, Configurable, 6 Timing Functions - CT-E Series - 1SVR550029R8100

Get control of the opening and closing of contacts in your sensitive devices using this timer relay from ABB. It lets you add a delay period so the contacts will only activate based on the pre-set time. As you can adjust the range between 0.05s and 100h, the unit lets to time your operation precisely and with reliable repeatability. Two LED indicators are on standby to shed light on its operating status, so configuration can be done in a flash.

Features & Benefits

• Can be mounted in any position for flexible assembly
• Six timing functions available for versatility
• Silver cadmium oxide contacts offer resistance to corrosion
• DIN rail mounting for speedy and tool-free installation
• Ambient operating temperature ranges between -20°C and +60°C for safe use in challenging settings

Applications

• Control panels
• Conveyor systems
• Food production and packaging
• Household appliances

How do I set the timer function of this relay?

You can adjust the time function of this relay using the internal potentiometer. A direct reading scale ion the front lets you keep a close eye on the setting as you configure it.

Approvals

UL listed / UL listed for Canada, GL, GOST, c-Tick

Electronic timer CT-MFE Data Sheet

Electronic Timers CT-S / CT-E Range - Function Diagramms, Technical Data, Wiring Diagrams & Dimensional Drawings

UL LISTED FOR CANADA E140448

GL_94633-94HH

Control Cabinet Solutions

Brochure - Electronic Timers

Catalogue - Electronic Products and Relays

Instruction Sheet - 1SVR550029R8100
