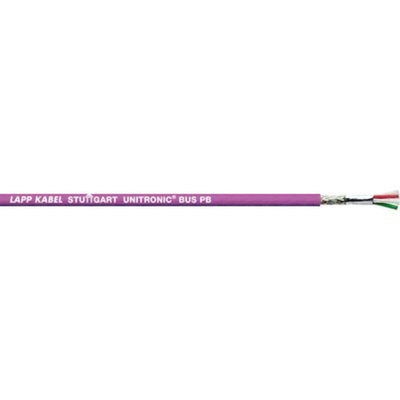

2170220, Lapp UNITRONIC BUS PB Data Cable, 2 Cores, 0.64 mm², Screened, 100m, Purple PVC Sheath, 19 AWG, Кабель

LAPP Data Cable, 250V Voltage Rating, 7.8mm OD - UNITRONIC BUS PB Series - 2170220

Move information around your system smoothly with this data cable from LAPP. Its copper wires keep signals flowing freely, so it easily handles data management tasks. Don't worry about high EMI levels, as tin-plated copper-braid shielding is on hand to tune out disruption from electrical noise. A hard-wearing PVC sheath covers the 2 cores, protecting against the scrapes and cuts you'd expect in busy work areas. Slipping the product into tight spaces is easy, thanks to its slim 7.8mm outer diameter.

Features & Benefits

• Test voltage rating of 1.5kV, so it stands up to electrical surges
• 100m reel for long runs or easy cutting to length
• PE foam insulation to protect sensitive wires in damp conditions

Applications

• Industrial automation
• Cold storage facilities
• Manufacturing industry

How can I identify the wires in this cable?

This product comes with colour-coded conductor cores, so telling its wires apart is no bother.

Approvals

UL/CSA (CMX) - Only UL/CSA Version

Standards

DIN 19245; EN 50170

LAPP Industrial Cable

IBS cables for industrial communications and field bus in sensors / actuators.

• Peak working voltage 250V (not for power purposes)
• Test Voltage 1500V
• Temperature range -40°C to +80°C
