0016066, Lapp ÖLFLEX CLASSIC 100 SY 4 Core SY Control Cable 1.5 mm², 50m, Screened, Кабель

4440446
Номер производителя: 0016066Производитель: Lapp
Цена за 1 катушку (50 метров)
48504.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

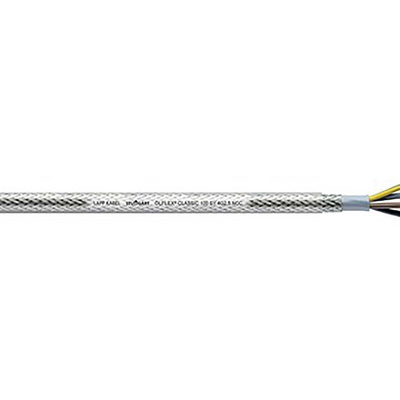

Ölflex® Classic 100 SY Cable

From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

Standards

VDE 0295, Part 5

Техническая спецификация
pdfLAPP Cable to Gland Cross Reference
pdfDatasheet
pdfCables Selection Guide
Американский размер проводов:
16 AWG
Внешний диаметр:
10.2мм
Длина:
50м
Жилы:
30/0.25 мм
Кабель заземления:
Да
Количество ядер:
4
Маслостойкость:
Да
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Медь
Минимальный радиус изгиба:
Fixed - 6 x D Occasional Flexing - 20 x D
Наполнитель:
Non-Wicking Filler
Номинал тока:
18 A
Номинальное напряжение:
300/500 В
Площадь поперечного сечения:
1.5 мм²
Подстилочный материал:
ПВХ
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
Серия:
ÖLFLEX CLASSIC 100 SY
Сопротивление проводника:
13.5 Ом/км
Цвет оболочки:
Прозрачный
Экран тип:
Galvanised Steel Braid
Экранированный/неэкранированный:
Screened
