00160903, Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 5 Cores, 2.5 mm², SY, Screened, 50m, Grey PVC Sheath, 14 AWG, Кабель

Ölflex® Classic 100 SY Cable

From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance. Coupled with its resistance to chemicals and oils, Olflex Classic 110 cables are fit for use in the roughest of operating conditions.

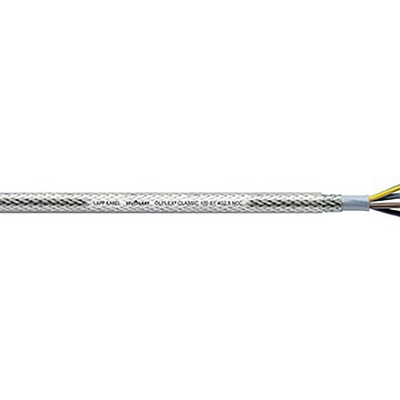

The flexible multi-core cable is comprised of fine-wire copper strands twisted in layers, covered in PVC insulation. Then cable then has an oxidated protective steel wire braiding, and a transparent flame retardant out sheath. The transparent sheath is useful to inspect the cable for wear and tear, such as corrosion and deterioration.

Features and Benefits

• Fine copper wire strands in accordance to VDE 0295 class 5 / IEC class 5
• Flame retardant to IEC 60332-1-2
• High resistance against acids, alkaline and oils
• Good Chemical Resistance
• Excellent mechanical protection
• Compliant with directive 73//23 (Low Voltage Directive)
• Operating temperature range for fixed installations -40°C to +80°C
• Operating temperature range for occasional flexing -5°C to +70°C

Applications

Lapp Olflex Classic 110 SY cable is very durable, and so can be used for a wide range of applications in areas where high mechanical stress is likely. It is often used in;

• HVAC Systems
• Industrial Machinery
• Machine Tooling
• Plant Engineering

Accessories

Lapp cables should be used with accessories that match their capabilities, and as such Lapp provides a range of durable and easy-to-install cable glands.

• 433-0945 is an M16 IP68 Skintop Cable Gland
• 433-0951 is an M20 IP68 Skintop Cable Gland
• 433-0967 is an M25 IP68 Skintop Cable Gland
• 433-0973 is an M32 IP68 Skintop Cable Gland
• 433-0989 is an M40 IP68 Skintop Cable Gland

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 15.2mm Outer Diameter, 26A Current Rating - ÖLFLEX CLASSIC 100 SY Series - 00160903

Deliver operating signals to the circuits of your equipment with this 5-core control cable from LAPP. Its bare copper conductors with a 2.5mm² cross-sectional area go with the flow and give reliable power and signal transmissions. As it has a 26A current rating, this lead can handle the demands of high-current electrical systems. The durable PVC jacket has self-extinguishing properties for safe use in places at risk of fire. This cable stands up to acids, oils and chemicals for durability in challenging operations.

Features & Benefits

• Reel length of 50m offers sufficient stock for multiple applications
• Galvanised steel braid screen shields signals from EMI
• Integrated earth cable to discharge fault currents

Applications

• Oil and gas rigs
• Construction sites
• Electrical engineering

How flexible is this cable?

This cable has a minimum bend radius that's six times its 15.2mm diameter in fixed applications and 20 times its diameter in occasional flexing installations.

Standards

VDE 0295, Part 5
