1136403, Lapp ÖLFLEX CLASSIC 115 CY Control Cable, 3 Cores, 2.5 mm², CY, Screened, 50m, Grey PVC Sheath, 13 AWG, Кабель

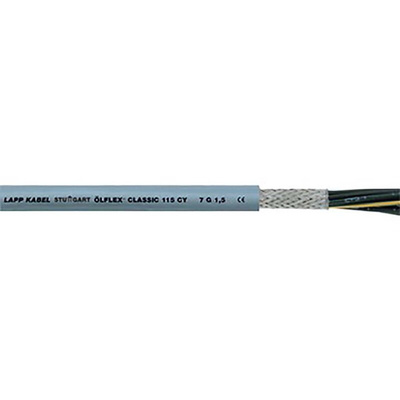

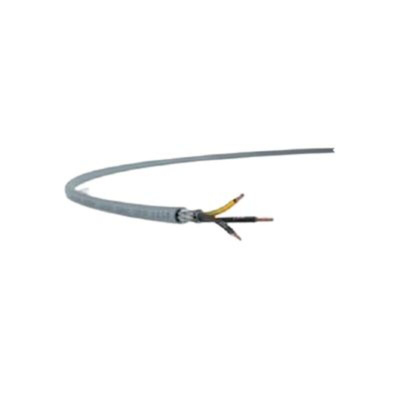

Ölflex® Classic 115 CY

From Lapp, this Olflex Classic 115 CY control cable is shielded for EMC compliance. The cable is thin, light and flexible, making it suitable for a variety of applications.

As well as being resistant to interference signals, the cable also has oil and chemical resistance, meaning it is ideal for use in challenging industrial environments.

The Olflex Classic 115 CY comprises of fine-wire copper strands, with a PVC insulation and sheath that is flame retardant. It also features a small diameter for installations where space saving is a concern.

Features and Benefits

• Tough and flexible and resistant to most oils and chemicals
• Space saving design
• Covered in an insulating foil
• Outer sheathing made from special PVC-based compound
• Flame-retardant to IEC 60332-1-2
• Low transfer impedance

Applications

This Olflex Classic cable is highly versatile, with resistances that make it ideal for use in;

• Industrial Machines
• Rail vehicles
• HVAC systems

Accessories

Lapp Olflex Classic cable should only be used with accessories that meet its capabilities, and as such provide a series of cable glands that are EMC compliant.

• 560-701 is an M25 Skintop Cable Gland with EMC Brush
• 560-713 is an M32 Skintop Cable Gland with EMC Brush
• 560-694 is an M40 Skintop Cable Gland with EMC Brush

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, 50m Length, 8.9mm Outer Diameter - ÖLFLEX Series - 1136403

Achieve stable connections in your machines using this control cable from LAPP. Thanks to tinned copper braid screening, it's shielded from EMI and RFI to ensure clear signal quality during transmissions. The PVC outer sheath material is resistant to wear and chemicals for durability in demanding conditions. The cable is supplied on a reel of 50m, so you can cut it down to size as needed to suit your setup.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C for use in harsh settings
• Small outer diameter of 8.9mm for ease of installation in busy setups

Applications

• Manufacturing industry
• Rail vehicles
• Electrical engineering
• Lighting fixtures

Does this cable have an earth wire?

Yes, this cable features an earth wire to redirect potentially harmful current to the ground, preventing electric shocks and protecting your system from damage.

Standards

VDE 0295, Part 5
