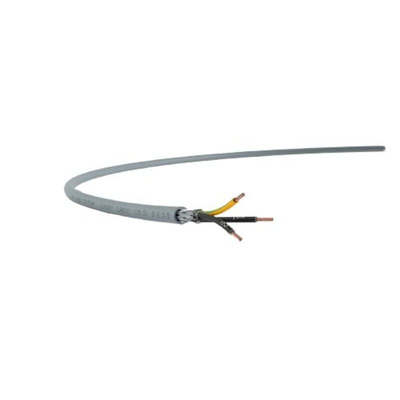

1136304, Lapp ÖLFLEX CLASSIC 115 CY Control Cable, 4 Cores, 1.5 mm², CY, Screened, 50m, Grey PVC Sheath, 16 AWG, Кабель

LAPP Grey Control Cable, 50m Length, 4 Cores - ÖLFLEX Series - 1136304

Connect power supplies and control systems with this LAPP control cable. It has 4 cores, making it suitable for use in light-duty to medium-duty energy supply chains. The cable is flame-retardant, so it won't escalate fires and helps minimise damage to your electrical connection. It comes wrapped in a sheath made from PVC, which is a high-strength material that resists strain and fraying when bent around corners. The cable's filler material is non-wicking, meaning it resists structural breakdown when exposed to moisture, so you can rely on it for lasting flexibility.

Features & Benefits

• PVC insulation protects the copper cores from oil and chemical contaminants
• Operating temperature range between -40°C and +80°C for use in harsh conditions
• Tinned-copper braided wires safeguard against corrosion wear
• Screened construction to prevent NEXT (near-end cross talk) and deliver clear signals

Applications

• Commercial appliances
• Industrial machinery
• Heating, ventilation and air-conditioning systems
• Rail industry

How do I connect this control cable's unterminated ends to a connector?

To connect this control cable's unterminated ends, start by using a pair of wire strippers to remove a portion of the cable coat. When the cores are visible, wrap them around the conductors on your connector terminals.

Standards

VDE 0295, Part 5
