1136307, Lapp ÖLFLEX CLASSIC 115 CY Control Cable, 7 Cores, 1.5 mm², CY, Screened, 50m, Grey PVC Sheath, 16 AWG, Кабель

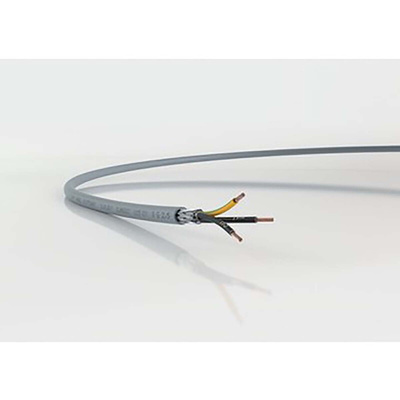

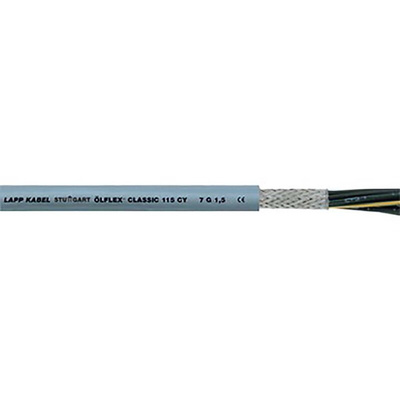

Ölflex® Classic 115 CY

From Lapp, this Olflex Classic 115 CY control cable is shielded for EMC compliance. The cable is thin, light and flexible, making it suitable for a variety of applications.

As well as being resistant to interference signals, the cable also has oil and chemical resistance, meaning it is ideal for use in challenging industrial environments.

The Olflex Classic 115 CY comprises of fine-wire copper strands, with a PVC insulation and sheath that is flame retardant. It also features a small diameter for installations where space saving is a concern.

Features and Benefits

• Tough and flexible and resistant to most oils and chemicals
• Space saving design
• Covered in an insulating foil
• Outer sheathing made from special PVC-based compound
• Flame-retardant to IEC 60332-1-2
• Low transfer impedance

Applications

This Olflex Classic cable is highly versatile, with resistances that make it ideal for use in;

• Industrial Machines
• Rail vehicles
• HVAC systems

Accessories

Lapp Olflex Classic cable should only be used with accessories that meet its capabilities, and as such provide a series of cable glands that are EMC compliant.

• 560-701 is an M25 Skintop Cable Gland with EMC Brush
• 560-713 is an M32 Skintop Cable Gland with EMC Brush
• 560-694 is an M40 Skintop Cable Gland with EMC Brush

Standards

This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, PVC Sheath Material, 7 Cores - ÖLFLEX CLASSIC 115 CY Series - 1136307

Need a wire that can take the reins in your equipment? Choose this control cable from LAPP. It lets you hook up measurement, regulation and control systems in a jiffy. The PVC insulation protects the inner wires from damage and shields you from electric shock for enhanced safety. As the tin-plated copper wires are corrosion-resistant and highly conductive, you get lightning-fast and reliable signal transmission.

Features & Benefits

• PVC sheath resists wear and tear for long-lasting use in harsh environments
• Wide operating temperature range between -40°C and +80°C in fixed installations, so it can take the heat in demanding conditions

Applications

• Telecommunications sector
• Control systems
• Manufacturing industry

Can I bend this cable when installing it?

Yes, this cable has a minimum bending radius of 20 times its outer diameter when flexed occasionally and six times its outer diameter in a fixed installation.

Standards

VDE 0295, Part 5
