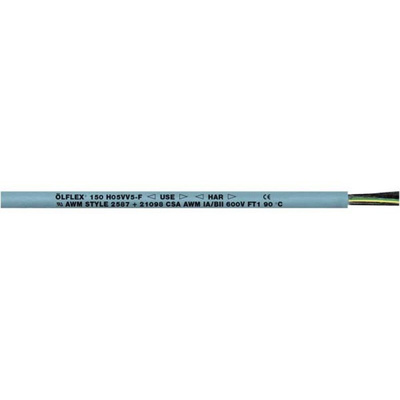

0015104, Lapp ÖLFLEX 150 Control Cable, 4 Cores, 0.75 mm², Unscreened, 100m, Grey PVC Sheath, 18 AWG, Кабель

Ölflex® 150 Quattro

From Lapp, OLFLEX 150 Quattro cables are an oil resistant multi-standard cable suited for a variety of applications. The harmonised cable has H05VV5-F and AWM approvals. With a special PVC-based compound sheath, it also features a high degree of chemical resistance, meaning it is suitable for specialist industrial environments.

The cable is made up fine strands of bare copper wire, twisted in layers, with a PVC core insulation. The Quattro 150 cable has multiple certifications and is suitable for wide range of applications. A such the series is available with varying numbers of cores, conductor sizes, and dimensions.

Though they are suitable for use in both dry and wet environments, these cables are not suitable for outdoor applications.

Features and Benefits

• Oil-resistant according to EN 50363-4-1: TM5
• Flame-retardant according to IEC 60332-1-2
• Chemical resistance
• PVC Core Insulation
• Twisted cores in layers
• Silver-grey RAL 7001
• Nominal Voltage 300/500V

Applications

Lapp OLFLEX 150 Quattro cables are harmonised (HAR) and suitable for occasional flexing, as such are widely used in fixed installations with medium mechanical load. Their intrinsic resistance makes them particularly suited for wiring in;

• HVAC Systems
• Plant Engineering
• Machine Tools

Accessories

OLFLEX Quattro cables can be securely managed through panel and machine housing with the Lapp range of cable glands, such as the Skintop Click range of easy-fit glands.

• 560-678 is an M12 Skintop Click Cable Gland for 3.5-7mm Cable Diameters
• 475-091 is an M16 Skintop Click Cable Gland for 4.5-10mm Cable Diameters
• 475-136 is an M20 Skintop Click Cable Gland for 7-13mm Cable Diameters
• 475-132 is an M25 Skintop Click Cable Gland for 9-17mm Cable Diameters
• 560-688 is an M32 Skintop Click Cable Gland for 11-21mm Cable Diameters

Standards

H05VV5-HAR, HD21.13, VDE 0295, part 5/IEC60228 C1.5

LAPP ÖLFLEX 150 Series Control Cable, Unscreened, Copper Conductor - 0015104

The LAPP control cable is a versatile oil-resistant multi-standard cable suitable for various applications in plant engineering, industrial machinery, heating, and air-conditioning systems, and machine tools. This cable is designed to operate under medium mechanical load conditions and occasional flexing without tensile load or compulsory guidance. With flame-retardant PVC insulation and a grey PVC sheath, this cable ensures safety and reliability in diverse industrial environments.

Features & Benefits

• 18 AWG copper conductor ensures efficient power transmission
• ECA CPR certification guarantees compliance with European fire safety standards
• Unscreened 4 core cable for simplified installation and maintenance
• Grey PVC sheath provides protection against environmental factors
• 0.75 mm² cross-section for optimal conductivity
• CE, CSA, UL certifications ensure high quality and reliability
• Flame-retardant PVC insulation for enhanced safety
• 100m length for flexibility in installation

Applications

• Ideal for use in plant engineering applications
• Suitable for industrial machinery installations
• Perfect for heating and air-conditioning systems
• Can be used in machine tools for efficient power transmission

Can it be used outdoors?

The Lapp ÖLFLEX 150 control cable is mainly designed for indoor use and should not be used outdoors.

Will it withstand high temperature environments?

Yes, this cable has a maximum operating temperature of +70°C, making it suitable for various industrial applications.

Is it suitable for applications with occasional flexing?

Yes, this cable is designed for applications with occasional flexing without tensile load, providing flexibility and reliability.

Standards

VDE 0295, part 5/IEC60228 C1·5

VDE 100639H

CSA LL53776-6

UL E63634
