Able Systems AP1200 Panel Printer, Принтер

Able Systems Thermal Printer

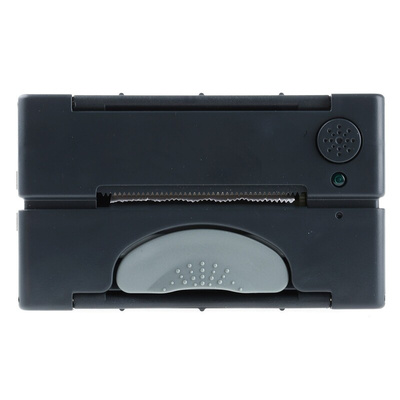

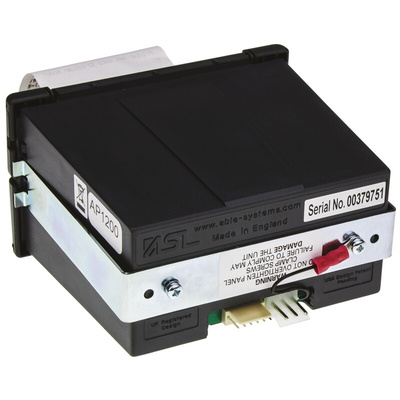

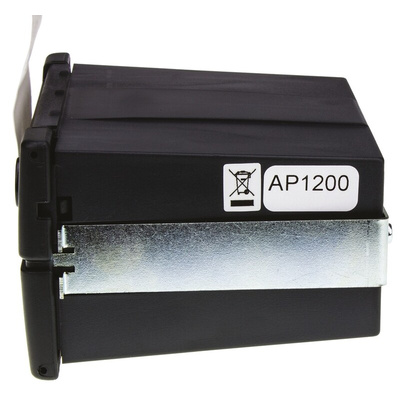

The Able Systems thermal printer is a panel-mount printer with a fixed head thermal printing mechanism. It has a resolution of 8dpmm with834 characters per line. This printer has an input voltage range between 5V and 8.5V and current range between 2A and 10A. It has a width of 115mm, the height of 67mm and depth of 104mm.

Features and Benefits

13 lines per second (default character size) 50mm per second print size
Baud rate is 1200 to 57600 (software selectable)
Data buffer is 20Kb
Data input is serial RS232/V24 as standard
Ease of integration and superb quality print-out
High resolution, high-quality print
Number of columns is 32 (default), 24 or 42
Paper out sensor

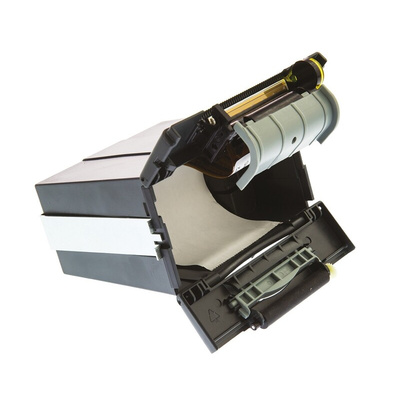

Unique easy paper-load system
Utilising a high speed

Applications

ATE
Autoclaves
Data recording
Fire and security panels
Industrial
Logging applications
Medical field
Mobile messaging systems
Taxi meters
Timing and telemetry systems and industrial data
Vehicle-based delivery systems
