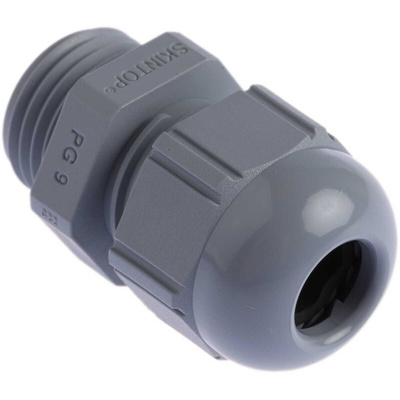

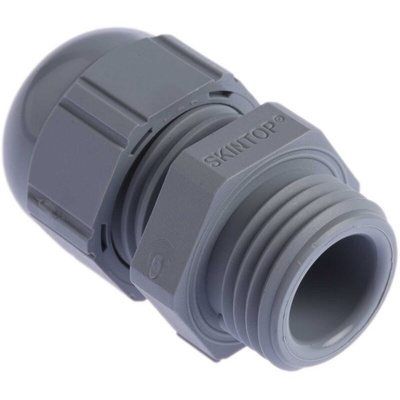

53015010, Lapp SKINTOP Series Grey Polyamide Cable Gland, PG9 Thread, 3.5mm Min, 8mm Max, IP68, Кабельный ввод

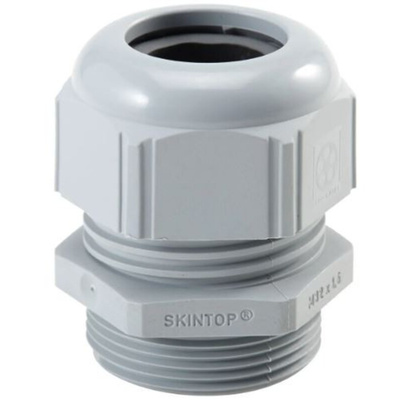

Skintop® ST PG Thread IP68 Cable Gland

From Lapp, the Skintop ST series of cable glands have a tough polyamide construction, and offer a high degree of environmental protection. Whether you’re connecting to panels, junction boxes or machinery casing, these cable glands are an easy-to-install solution in cable management.

With a simple screw-on design, the Skintop ST series ensures fast assembly times, and offers a variable clamping range with excellent strain relief.

These cable gland also feature a high degree of temperature, mechanical and oil resistance. Coupled with their permanent vibration protection, this makes them ideal for use with heavy machinery in industrial environments.

Features and Benefits

• Easy to Install
• Wide Clamping Range
• IP68, 5 bar Protection
• Mechanical Resistance
• Temperature Resistance
• Oil Resistance
• Chemical Resistance
• Vibration Protection

Applications

The Skintop ST series of cable glands can be used where ever wires and cables need to be inserted into panel-style housings through pre-bored holes. Their space saving design makes them ideal for;

• Machine and Equipment Manufacturing
• Photovoltaic and Solar Electric Technology
• Control and Automation Technology

Environment

These cable glands are sealed to IP68 and have a 5 bar pressure rating. This means they have excellent protection against dust ingress and are waterproof even up to shallow submersion. As such, they are suitable for use in harsh environments and some open air applications.

Accessories

Skintop ST cable glands can be used with corresponding PG sized nylon locknuts.

• 444-2688 are grey Locknuts, PG7, IP68
• 444-2694 are grey Locknuts, PG9, IP68
• 444-2717 are grey Locknuts, PG11, IP68
• 444-2723 are grey Locknuts, PG13.5, IP68
• 444-2739 are grey Locknuts, PG16, IP68
• 444-2745 are grey Locknuts, PG21, IP68
• 444-2751 are grey Locknuts, PG29, IP68
• 444-2830 are black Locknuts, PG7, IP68
• 444-2846 are black Locknuts, PG9, IP68
• 444-2852 are black Locknuts, PG11, IP68
• 444-2874 are black Locknuts, PG13.5, IP68
• 444-2880 are black Locknuts, •PG16, IP68
• 444-2896 are black Locknuts, PG21, IP68
• 444-2903 are black Locknuts, PG29, IP68

Note

Glands are not supplied with locknuts.

LAPP Cable Gland, Integrated Strain Relief, 21.1mm OD - SKINTOP Series - 53015010

This cable gland from LAPP helps secure your industrial system's electrical connections. By sealing cable ends inside your machinery, it provides strain relief to protect against damage caused by movement or twisting. A versatile clamping range between 3.5 and 8mm means you can use it with various commonly used cables. The gland minimises assembly time as it screws directly onto your equipment without the need for tools. As it resists vibration, it's a practical option for heavy-duty environments.

• Hard-wearing PA body for effective resistance to oil, chemicals and temperatures from -20°C to +80°C
• Compact outer diameter of 21.1mm for simple mounting in confines spaces
• IP68 rating indicates it's dust-tight and resistant to water submersion, so suits use in harsh settings

Applications

• Power distribution networks
• Automated assembly lines
• Metalworking facilities

How is this cable gland supplied?

The component comes in packs of five units for convenient stocking.
