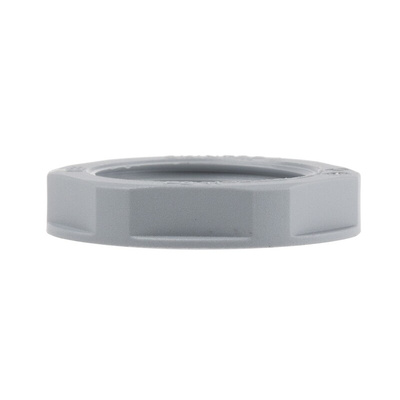

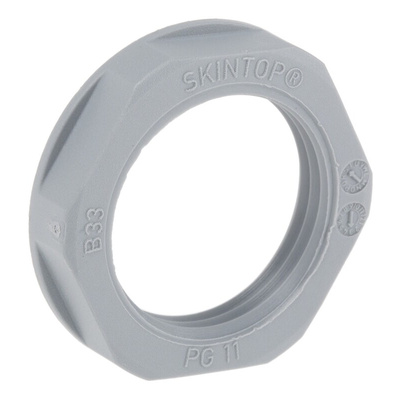

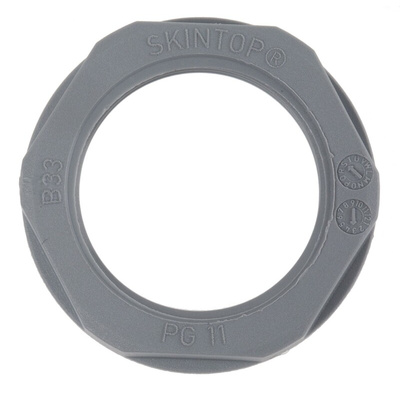

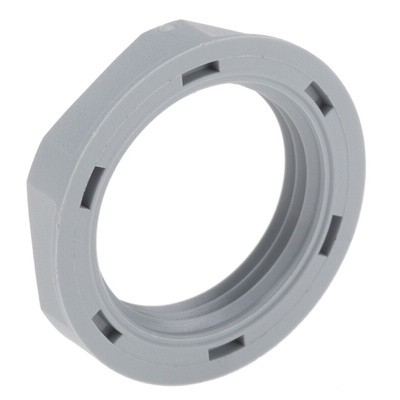

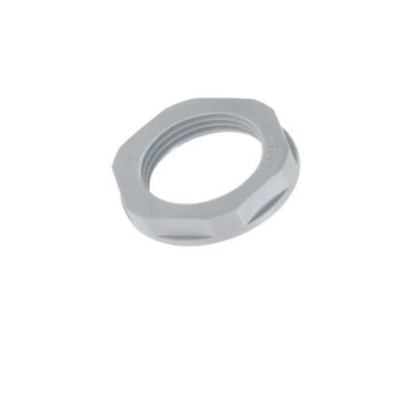

53019020, Lapp Grey Flame Retardant, Halogen Free Fibreglass PA Cable Gland Locknut, PG11 Thread, IP68, Гайка

PG Thread Locknuts

From Lapp, these Skintop cable gland lock nuts work with compatible Skintop cable glands to provide a secure fixing to panels, junction boxes and machinery housing. With an easy-to-fit screw on action, the cable glands attach through threadless bore holes to secure maximum mechanical stability.

These locknuts have a robust polyamide glass fibre-reinforced construction, and have excellent temperature resistance. They also feature a supporting surface for assembly tools, which helps prevent damage and scratches to the lock nut and housing.

Features and Benefits

• Robust Glass-Fibre Reinforced Construction
• Easy to Assemble
• Temperature Resistant
• Operating Temperature Range of -20°C to +100°C
• PG Sizes

Applications

These lock nuts are compatible with Skintop ST cable glands, which are often used in applications, such as:

• Machine and Equipment Manufacturing
• Photovoltaic Technology
• Automation Technology

Environment

This cable gland lock nut provides does not provide environmental resistance by itself, but does not compromise the IP rating of the cable gland it is used with.

Accessories

These lock nuts are compatible with PG threaded Skintop ST cable glands;

• 389-577 is a Grey Skintop Cable gland, PG7, IP68
• 389-583 is a Grey Skintop Cable gland, PG9, IP68
• 389-599 is a Grey Skintop Cable gland, PG11, IP68
• 389-606 is a Grey Skintop Cable gland, PG13.5, IP68
• 389-612 is a Grey Skintop Cable gland, PG16, IP68
• 392-056 is a Grey Skintop Cable gland, PG21, IP68
• 392-062 is a Grey Skintop Cable gland, PG29, IP68
• 182-9127 is a Grey Skintop Cable gland, PG36, IP68
• 182-9133 is a Grey Skintop Cable gland, PG42, IP68
• 206-6080 is a Black Skintop Cable gland, PG7, IP68
• 206-6096 is a Black Skintop Cable gland, PG9, IP68
• 206-6103 is a Black Skintop Cable gland, PG11, IP68
• 206-6119 is a Black Skintop Cable gland, PG13.5, IP68
• 206-6125 is a Black Skintop Cable gland, PG16, IP68
• 206-6131 is a Black Skintop Cable gland, PG21, IP68
• 206-6147 is a Black Skintop Cable gland, PG29, IP68

LAPP Cable Gland Locknut, Hexagonal, Halogen Free - SKINTOP Series - 53019020

Use this locknut from LAPP for the firm installation of your cable glands. It's designed for fittings in the SKINTOP series and provides a secure seal that keeps the gland stable and prevents accidental disconnection in vibrating settings. Thanks to its in-built supporting surface, this unit won't suffer scratches from assembly tools, so you can rest assured of long-term service. With a durable polyamide body, it can withstand mechanical impact, making it suitable for use in harsh environments.

• Broad operating temperature range of -20°C to +100°C for use in demanding conditions
• PG11 thread for simple installation on small-sized cable glands

Applications

• Medical facilities
• Robotics and automation systems
• Automotive industry

Is this cable gland locknut dustproof?

Yes, this unit's IP68 rating shows that it's fully protected against dust and can withstand immersion in up to 1.5m of water for 30 minutes.

Datasheet - 53019
