53015250, Lapp SKINTOP Series Black Polyamide Cable Gland, PG21 Thread, 13mm Min, 18mm Max, IP68, Кабельный ввод

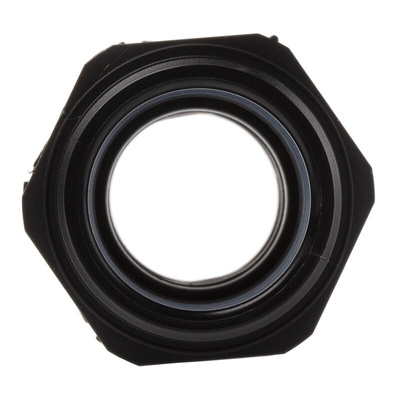

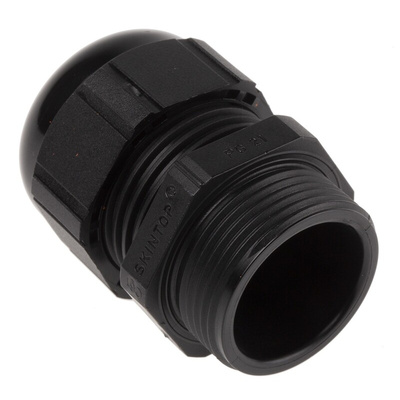

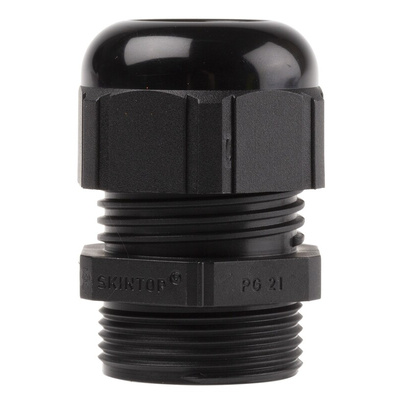

LAPP Cable Gland, PA Body Material, 13 to 18mm Cable Diameter Range - SKINTOP Series - 53015250

Keep your industrial wiring out of harm's way with this cable gland from LAPP. Its body is made of durable PA that withstands impact and chemicals, providing long-term performance in demanding conditions. An NBR O-ring and CR sealing ring protect your electrical components by preventing contaminants from entering your enclosure. The unit also provides strain relief that protects cables from damage caused by twisting and bending.

Features & Benefits

• IP68 rating means it's dust-tight and resistant to immersion in 1.5m of water for 30 minutes
• Supports cables with diameters ranging between 13 and 18mm for versatile installation
• Screw-on design means you can install it without any special tools

Applications

• Robotics and automation systems
• Telecommunications equipment
• Chemical plants

Is this unit flame-resistant?

Yes. This cable gland has self-extinguishing properties and stops burning in less than 60 seconds, limiting the spread of flames in the event of a fire.

Datasheet

Cable Gland Selection Chart

Instruction Sheet - 53015250
