53111200, Lapp SKINTOP Series Black Polyamide Cable Gland, M12 Thread, 3.5mm Min, 7mm Max, IP66, IP68, IP69K, Кабельный ввод

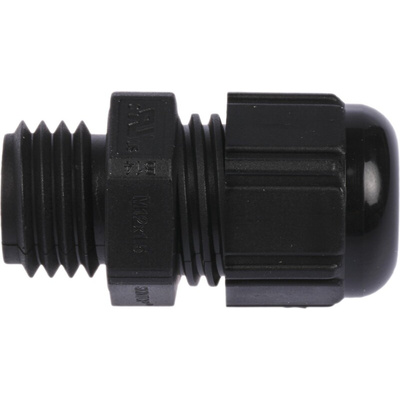

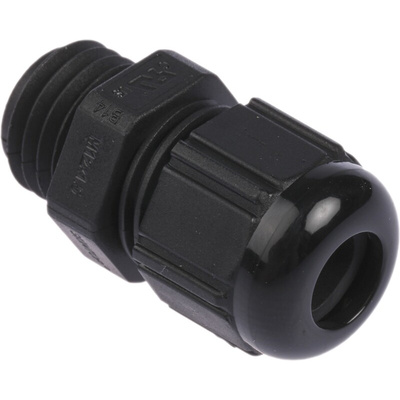

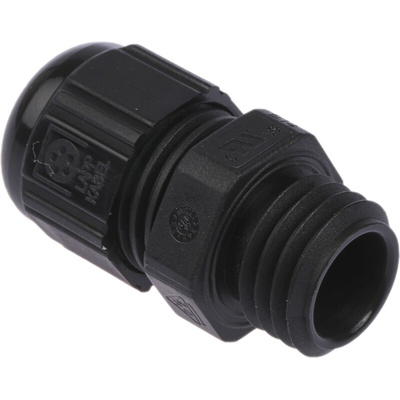

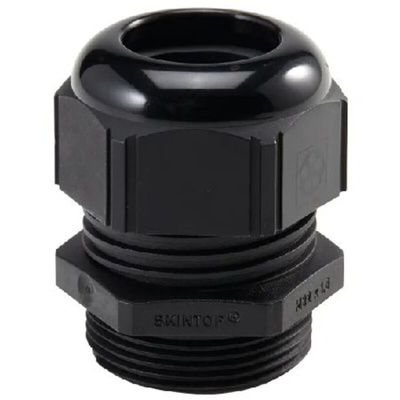

LAPP Cable Gland, M12 Thread, 3.5 to 7mm Cable Diameter - SKINTOP Series - 53111200

Looking for a way to seal the end of a cable when attaching it to an enclosure? Use this cable gland from LAPP. It has a simple screw-on design so you'll find it easy to plug in without the need for complex tooling. The polyamide body is resistant to wear and oil, so you can use it in demanding environments like factories. As this cable gland is vibration-proof, you can be sure of a secure connection, even with heavy-duty machinery.

Features & Benefits

• Wide operating temperature range between -20°C and +100°C for use in demanding environments
• Ingress protection ratings of IP66, IP68 and IP69K mean it's protected against damage caused by dust, steam and water immersion
• Compatible with cable diameters between 3.5 to 7mm for versatility
• Built-in strain relief prevents cables being damaged by bending

Applications

• Manufacturing industry
• Photovoltaic devices
• Control panels
• Automotive industry

How do I attach a cable to this cable gland?

To attach a cable to this gland, remove the nut and strip the outer sheath of the cable to match the length of the gland. Insert the cable into the gland while spreading the peeled sheath around it. Re-attach the nut and tighten it using a compatible spanner.

LAPP_PRO976_Datasheet

Cable Gland Selection Chart
